鞍山雷盛電子有限会社の製品一覧
鞍山雷盛電子有限会社の製品一覧

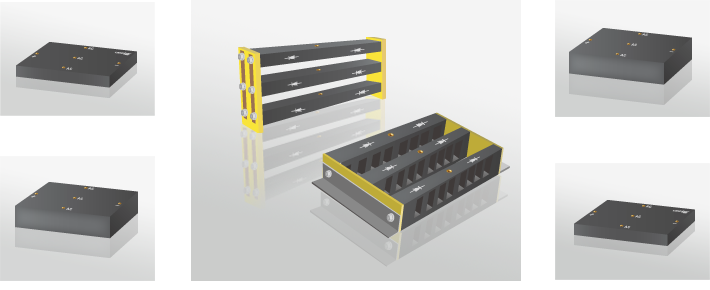

高圧ブリッジ整流 H.QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
H.QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type ...

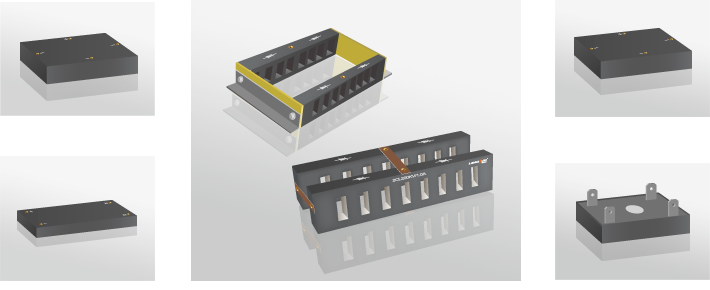

高圧整流ブリッジ QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Type Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type KV ...
高圧ブリッジ整流 3QL(10-30)KV/0.02A,0.05A,0.1A,0.2A,0.3A
3QL(10-30)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Type Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type ...
高周波高圧ブリッジ整流 H.QL(10-300)KV/0.02A,0.05A,0.1A,0....
H.QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Type Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type ...
高周波高圧ブリッジ整流 QL(10-300)KV/0.02A,0.05A,0.1A,0.2A...
QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Type Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type KV ...
高周波高圧ブリッジ整流 3QL(10-300)KV/0.02A,0.05A,0.1A,0.2...
3QL(10-300)KV/0.02A,0.05A,0.1A,0.2A,0.3A
Type Peak reverse repetitive voltage VRRM Forward average rectifier current If（AV) Max forward voltage Vfm Max forward surge current Ifsm Normal temperature leakage current Irrm Time of reverse recovery trr Type ...
MVシリーズ高圧倍圧モジュール
Steps of multiplication Max input peak voltage Output voltage Max output current Max working frequency Dimension High voltage output mode Type N KV KV mA KHZ (L×B×H) mm MV24-12VAC-80KV/0.1mA 12 12v 80 0.1 20 Φ30x140 High voltage line MV18-2.3KV-40KV/0.2mA 9 2.3 40 0.2 40 140x60x60 Screw MV1...
MVシリーズ倍圧モジュール
Steps of multiplication Max input peak voltage Output voltage Max output current Max working frequency Dimension High voltage output mode Type N KV KV mA KHZ (L×B×H) mm MV06-8.5kv-50kv/5mA 6 8.5 50 5 50 280x160x90 高压插针 MV06-8.5kv-50kv/10mA 6 8.5 50 10 50 280x160x90 高压插针 MV06-8.5kv-50kv/20mA ...

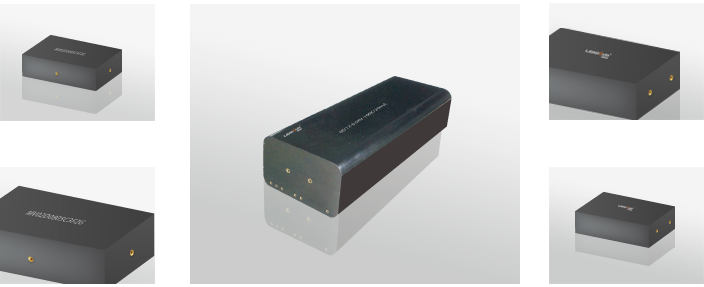

高圧充電電源 50KV/1.0A 40KV/1.5A
50KV/1.0A 40KV/1.5A
Max.output voltage:50KV/ 40KV Max.output current:1.0A/1.5A Charging time:<4.0mS(0.1uF/50KV) Max.repetitive frequency:200Hz Overcharge voltage:<250V Voltage program accurancy:1%,Voltage Repetitive accurancy:0.05% Voltage temperature coeffcient:5...
