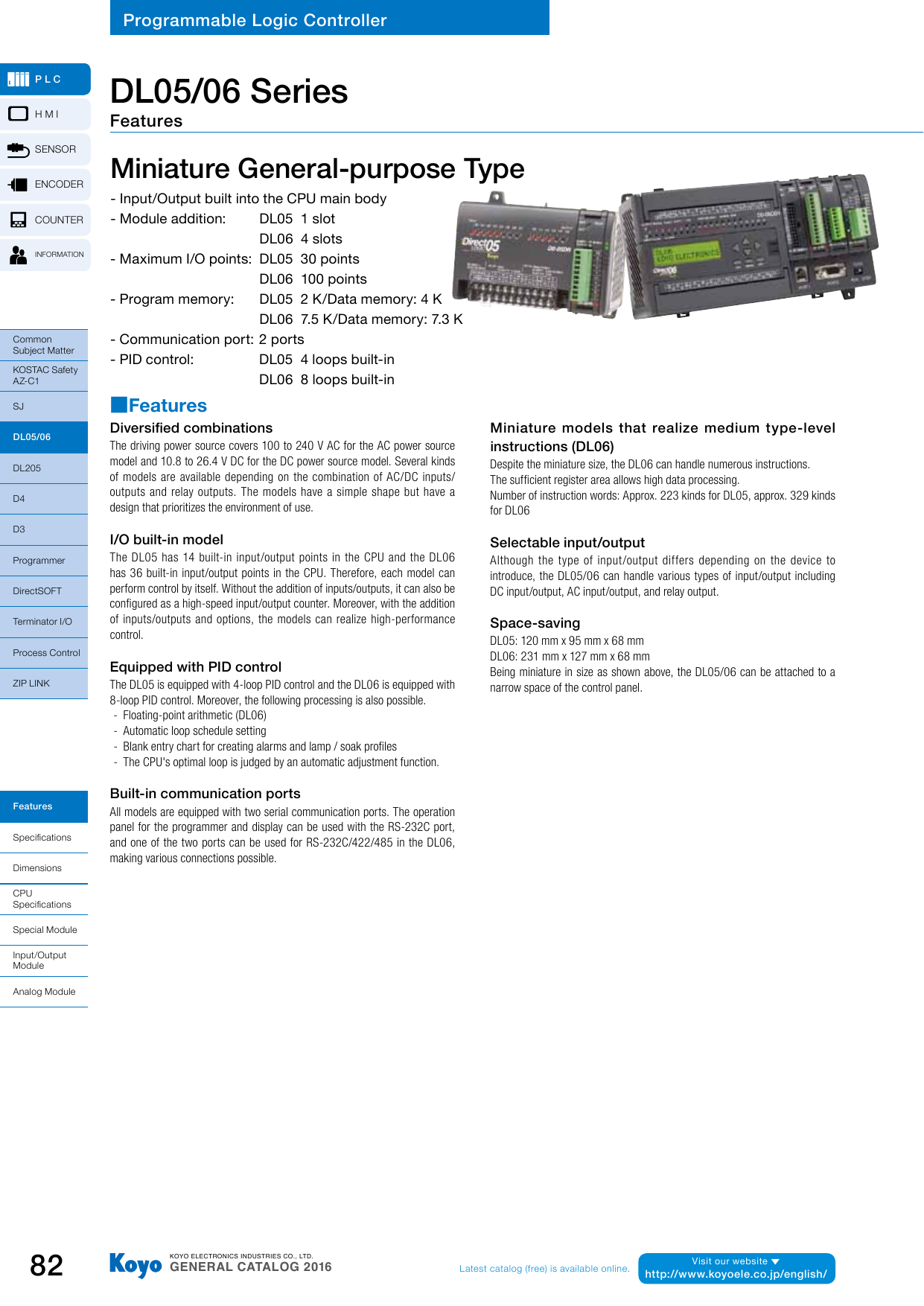

PLC
DL05/06 series
Miniature General-purpose Type PLC
KOYO ELECTRONICS INDUSTRIES CO., LTD.
- Input/Output built into the CPU main body
- Module addition: DL05 1 slot
DL06 4 slots
- Maximum I/O points: DL05 30 points
DL06 100 points
- Program memory: DL05 2 K/Data memory: 4 K
DL06 7.5 K/Data memory: 7.3 K
- Communication port: 2 ports
- PID control: DL05 4 loops built-in
DL06 8 loops built-in
Download of PLC DL0506 (6.5Mb)
Diversified combinations
The driving power source covers 100 to 240 V AC for the AC power source model and 10.8 to 26.4 V DC for the DC power source model. Several kinds of models are available depending on the combination of AC/DC inputs/outputs and relay outputs. The models have a simple shape but have a design that prioritizes the environment of use.
I/O built-in model
The DL05 has 14 built-in input/output points in the CPU and the DL06 has 36 built-in input/output points in the CPU. Therefore, each model can perform control by itself. Without the addition of inputs/outputs, it can also becon.gured as a high-speed input/output counter. Moreover, with the addition of inputs/outputs and options, the models can realize high-performance control.
Equipped with PID control
The DL05 is equipped with 4-loop PID control and the DL06 is equipped with 8-loop PID control. Moreover, the following processing is also possible.
- Floating-point arithmetic (DL06)
- Automatic loop schedule setting
- Blank entry chart for creating alarms and lamp / soak pro.les
- The CPU's optimal loop is judged by an automatic adjustment function.
| URL | http://www.koyoele.co.jp/product/plc/index.html |
|---|---|
| Maximum Program memory Size | 14.8 K |
| Program Memory | FlashMemory |
| Maximum I/O points | 512 |
