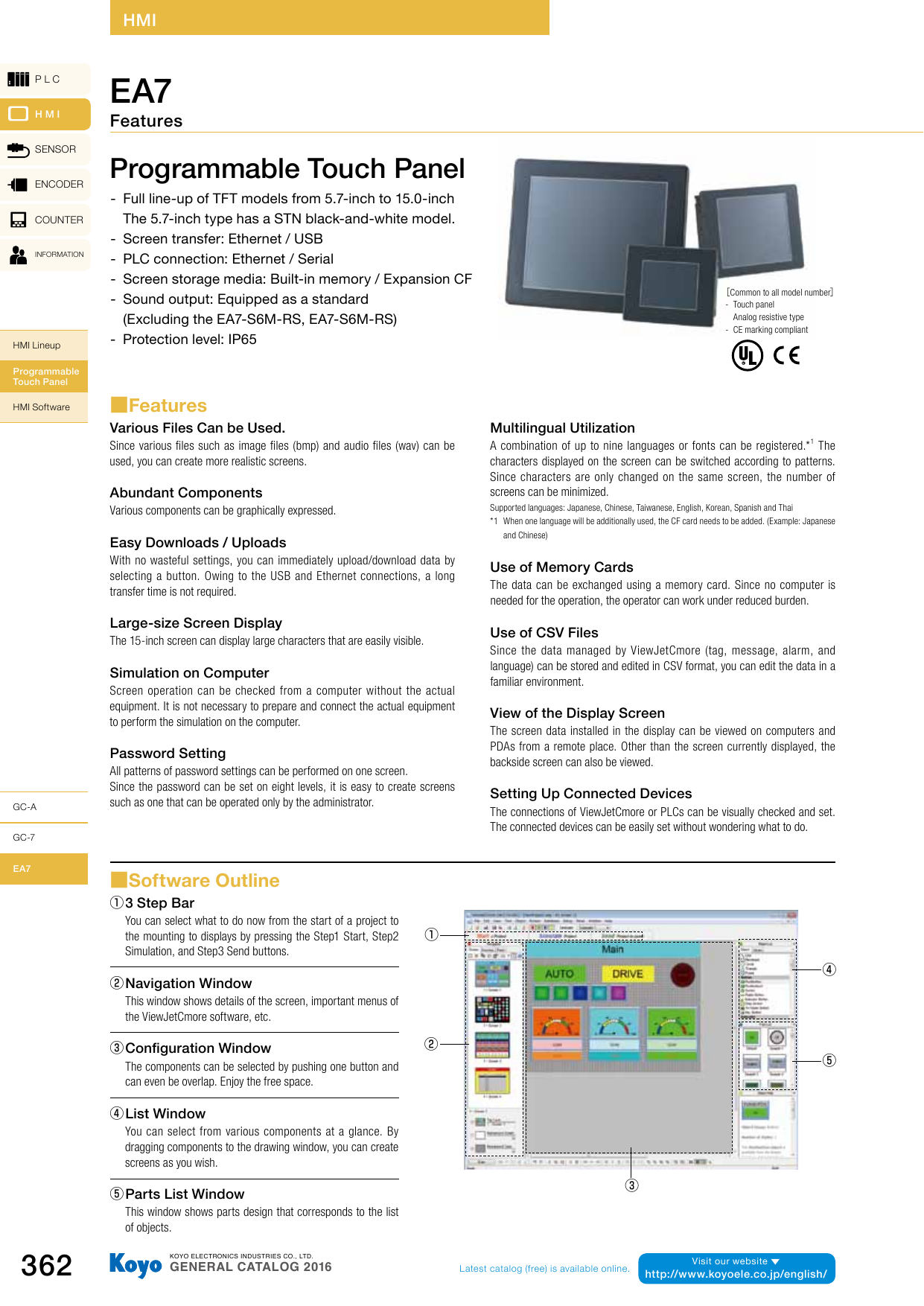

Programmable Touch Panel

EA7

Simple function and lineup

- Full line-up of TFT models from 5.7-inch to 15.0-inch
The 5.7-inch type has a STN black-and-white model.
- Screen transfer: Ethernet / USB
- PLC connection: Ethernet / Serial
- Screen storage media: Built-in memory / Expansion CF
- Sound output: Equipped as a standard
(Excluding the EA7-S6M-RS, EA7-S6M-RS)
- Protection level: IP65

Features of Programmable Touch Panel

Various Files Can be Used.

Since various .les such as image .les (bmp) and audio .les (wav) can be used, you can create more realistic screens.

Use of Memory Cards

The data can be exchanged using a memory card. Since no computer is needed for the operation, the operator can work under reduced burden.

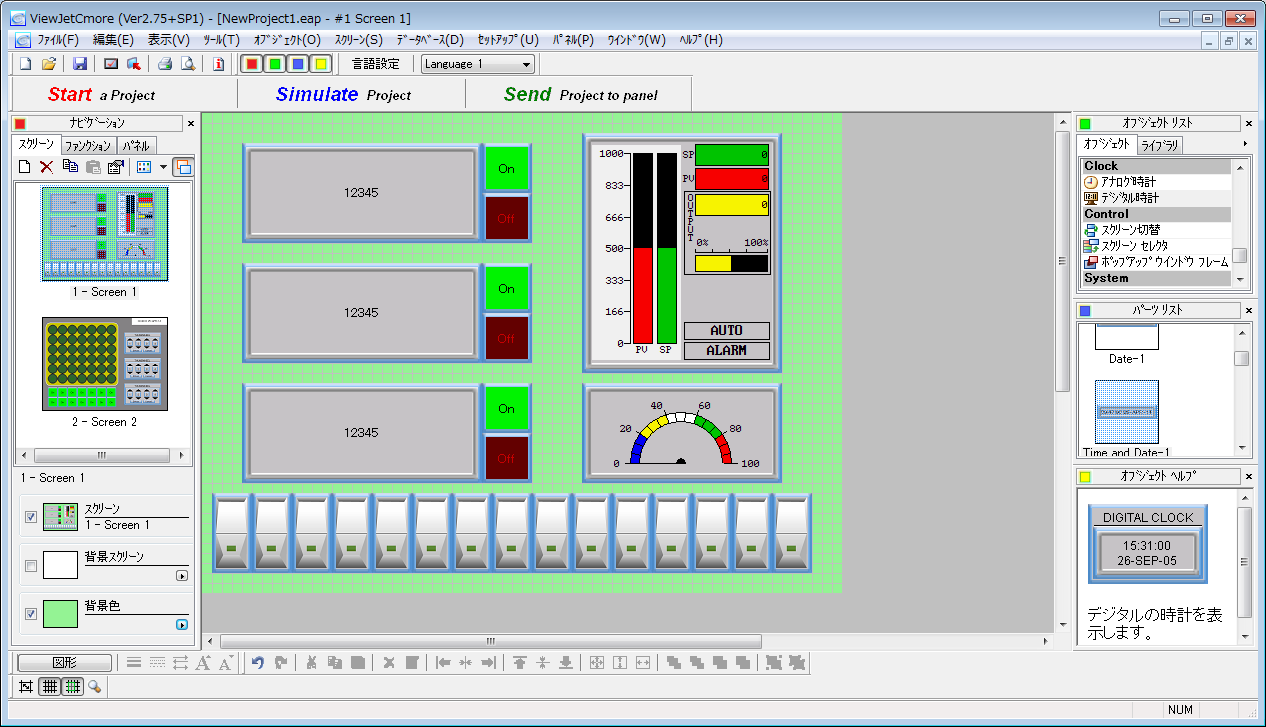

Simulation on Computer

Screen operation can be checked from a computer without the actual equipment. It is not necessary to prepare and connect the actual equipment to perform the simulation on the computer.

Information・Product Specifications of Programmable Touch Panel

URL	http://www.koyoele.co.jp/product/hmi/index.html
Device Size	5.7-inch / 8.4-inch / 10.4-inch / 12.1-inch / 15.0-inch
Display Device	STNモノクロ：15 gray gradations / TFT color LCD:262,144 color
Number of Dots	QVGA/VGA/SVGA/XGA
Backlight	CCFL/LED
Interfaces	Serial Port(RS-232C/RS-422/485)/USB A Port(USB1.1 )/USB B Port(USB2.0)/Ethernet/CF Card Slot/SoundOutput
Supply Voltage	24 V DC (100/200 V AC power supply module is available as an option: EA-AC)
Compliant Standards	UL508、CE EN61131-2
