Programmable Touch Panel

GC-7 series

Inherited the GC-5□display.

- 10.4-inch TFT color　Model number: GC-76LC
- 5.7-inch STN color　Model number: GC-73LCL-R
- 5.7-inch STN monochrome　Model number: GC-73LM-R

Features of Programmable Touch Panel

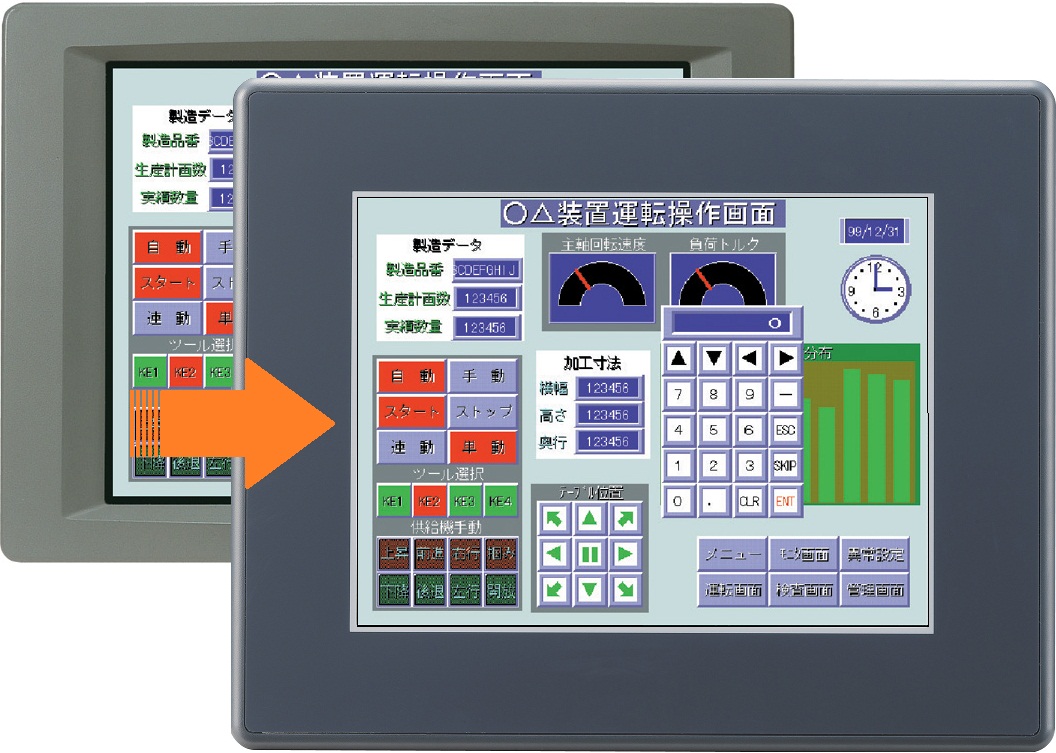

Shifted from the GC50 series.

The applications of the GC-50 series (GC-53LC3, GC-53LM3, and sGC56LC2) are partially inherited.
The applications can be replaced within restrictions.

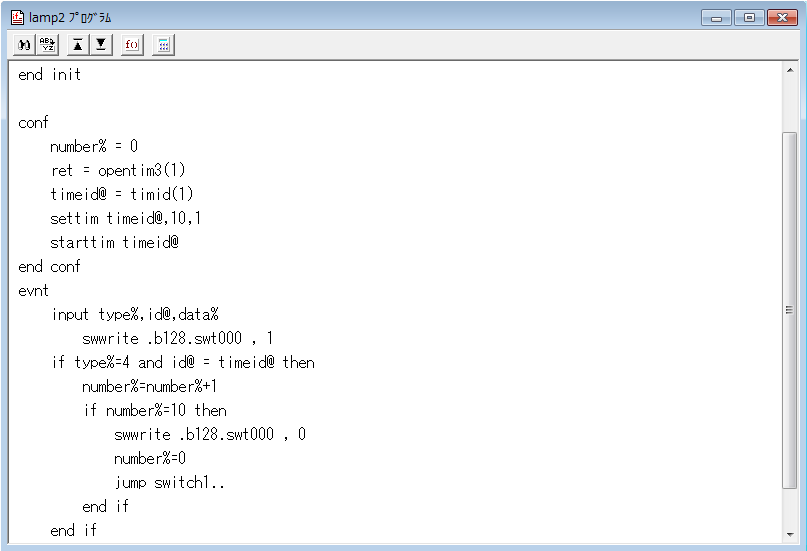

ScreenCreator5 is usable.

The ScreenCreator5 drawing software has been upgraded.
You can draw in the same way as with the GC-50 series.

Information・Product Specifications of Programmable Touch Panel

Display Device Size	5.7-inch / 10.4-inch
nstallation Structure	Bezel Type
Display Device	STN monochrome LCD:Black-and-white mode (15 gradations) TFT color LCD:65,536 color
Resolution	QXGA/VGA
Backlight	CCFL/LED
Interface	Serial Port(RS-232C/RS-422/485)/USB A port(USB1.1 )/USB B port(USB1.1)/CF Card Slot
Supply Voltage	24 V DC (100/200 V AC power supply module is available as an option: EA-AC)
Compliant Standards	UL508、CE EN61131-2
