Programmable Touch Panel

GC-A series

Display capability greatly improved on wide screen

KOYO ELECTRONICS INDUSTRIES CO., LTD.

Adopted WVGA, greatly improved display capability.It is possible to freely build a "large and easy to see" "wide and easy to use" screen.

Read more Close up

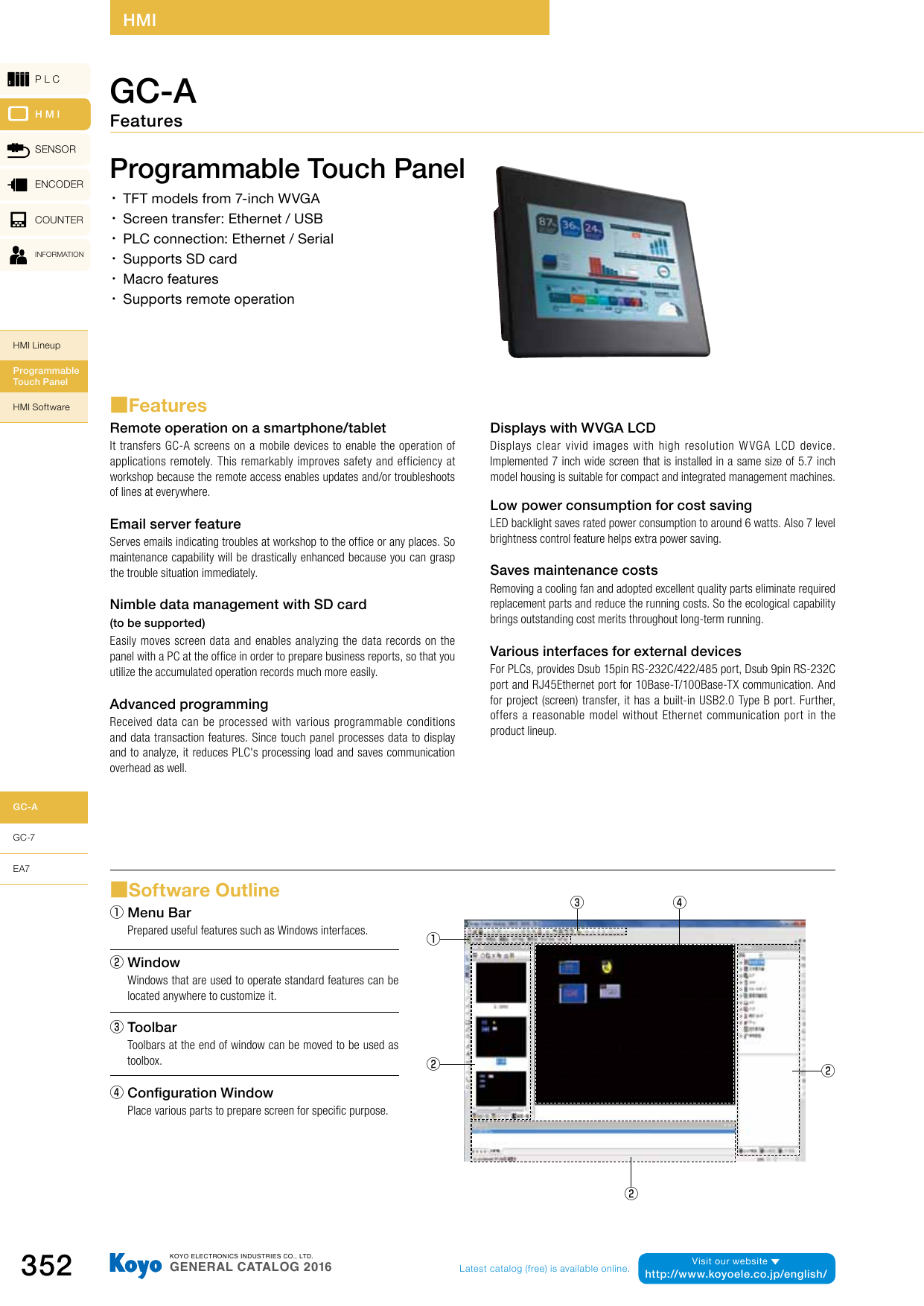

Download of eGC-A (410.1Kb)

Remote operation on a smartphone/tablet

It transfers GC-A screens on a mobile devices to enable the operation of applications remotely. This remarkably improves safety and efficiency at workshop because the remote access enables updates and/or troubleshoots of lines at everywhere.

Nimble data management with SD card (to be supported)

Easily moves screen data and enables analyzing the data records on the panel with a PC at the of.ce in order to prepare business reports, so that you utilize the accumulated operation records much more easily.

Advanced programming

Received data can be processed with various programmable conditions and data transaction features. Since touch panel processes data to display and to analyze, it reduces PLC's processing load and saves communication overhead as well.

Usage Furnace temperature control,Control of machine for linen supply,Operation of delivery box
URL http://www.koyoele.co.jp/english/product/hmi/01.html
Device Size 7-inch
Display Device TFT color LCD:262,144 color
Number of Dots 800 x 480 (WVGA)
Backlight LED
Interfaces Serial Port(RS-232C/RS-422/485)/USB A Port(USB1.1 )/USB B Port(USB2.0)/Ethernet/SD Card Slot
Supply Voltage 24 V DC (100/200 V AC power supply module is available as an option: EA-AC)
Compliant Standards UL508、CE EN61131-2

Related catalogs

Related catalogs of Programmable Touch Panel

eGC-A

KOYO ELECTRONICS INDUSTRIES CO., LTD.

Zip code 187-0004
4-9-1 Tenjin-cho Kodaira Shi Tokyo To
