KAKUTA Official Info
NO.FA120RK-2S ｜ Hook Type Clamp w/Lock No.FA120RK-2S
Series ： KAKUTA Hook(Pull) Type Toggle Clamp
Hook(Pull) Type Clamp w/Lock
Hook Type Clamp w/Lock No.FA120RK-2S Sales Info
Hook Type Clamp w/Lock No.FA120RK-2S EC Site List
There is no registered distributor
Would you like to list your products?
Register at ApérzaHook Type Clamp w/Lock No.FA120RK-2S Product Description
Hook(Pull) Type Clamp w/Lock
One-Action to hold or press and optimal for repetitive work.
Main Usage
Hook the U or hook type bar and pull.
Optimal for machine and equipment parts.

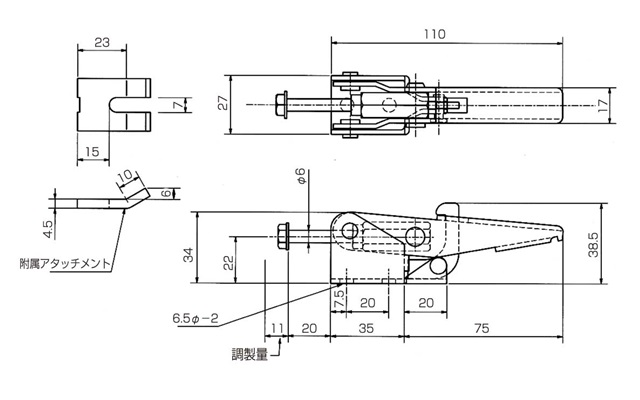

Hook Type Clamp w/Lock No.FA120RK-2S Specifications
| Holding Capacity(kN) | 1.7 |
|---|---|
| Mounting Method | Flange |
| Material | Stainless Steel |
| Length(mm) | 155 |
| Height(mm) | 125.5 |
| Width(mm) | 31.9 |
| Weight(g) | 190 |
| Stroke(mm) | 30 |
| Accessory | U attachement |
Hook Type Clamp w/Lock No.FA120RK-2S Details
| Manufacturer Brand | KAKUTA |
|---|---|
| Series Name | KAKUTA Hook(Pull) Type Toggle Clamp |
| Model Page | http://www.kakuta-clamp.com/product/no-fa120rk-2s/ |
| Category |
