General Catalog Lightning Protection ver.2 SANKOSHA proposes industry-leading lightning protection solutions. Don’t hesitate to talk to us. SANKOSHA Corporation: 4-3-8 Osaki, Shinagawa-ku, Tokyo 141-0032, Japan Phone +81-3-3491-7167 F a x +81-3-3494-7574 http://www.sankosha.co.jp/en E-mail info@sankosha.co.jp ● For printing reasons, the colors shown in the catalog may differ from those of the actual products. ● Thank you in advance for understanding that product specifications and external appearance may sometimes undergo slight changes for the sake of improvement. The content of this catalog is correct as of January, 2017. AD-99/17.01 General Catalog Lightning Protection ver.2 SANKOSHA Corporation

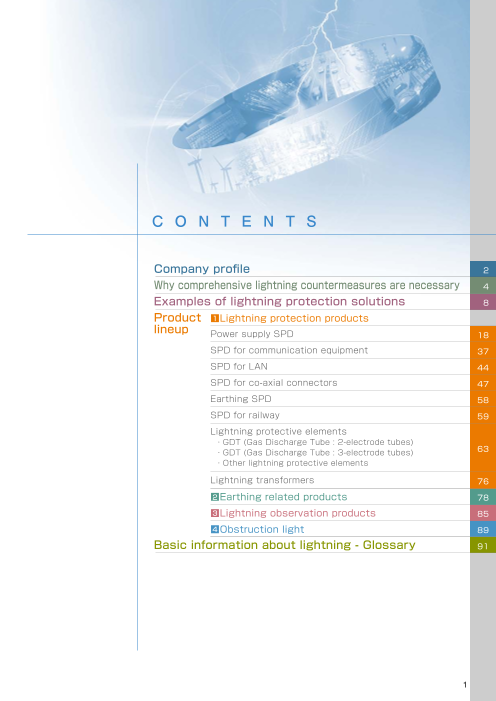

C O N T E N T S Company profile 2 Why comprehensive lightning countermeasures are necessary 4 Examples of lightning protection solutions 8 Product ■1 Lightning protection products 0 lineup Power supply SPD 18 SPD for communication equipment 37 SPD for LAN 44 SPD for co-axial connectors 47 Earthing SPD 58 SPD for railway 59 Lightning protective elements ・ GDT (Gas Discharge Tube : 2-electrode tubes) ・ GDT (Gas Discharge Tube : 3-electrode tubes) 63 ・ Other lightning protective elements Lightning transformers 76 ■2 Earthing related products 78 ■3 Lightning observation products 85 ■4 Obstruction light 89 Basic information about lightning - Glossary 91 1

Our total solution encompasses the three core Company Profile businesses of lightning protection, Telecommunications Name SANKOSHA Corporation Businesses ■Lightning protectionPresident Masayoshi Ito Manufacture and sales of SPD, GDT and semi- Founded April, 1930 conductor lightning protection elements and environmental countermeasures. Paid-in Capital ¥975,000,000 Manufacture, sales and installation of power supply protective devices and lightning transformers Employees 893 (Group total) (2016.3) Manufacture, sales and installation of earthing At Sankosha, we have worked to protect people and society from natural disasters Address ■Head Office enhancing compounds, earth electrodes, and 4-3-8 Osaki, Shinagawa-ku, Tokyo 141-0032 through our core businesses of lightning protection, telecommunications and environ- Phone:+81-3-3491-7181 Fax:+81-3-3494-7574 lightning-proof cablesLightning protection consulting mental countermeasures. ■Overseas Offices U.S.A. ■Telecommunications network solutions● Not only in Japan, but around the globe, we at Sankosha continue to work with our □SANKOSHA U.S.A., INC. Manufacture, sales and installation of optical 406 Amapola Avenue, Suite 135, Torrance, wiring boards, optical closures, MDF, and IDF customers to deliver safety and security to an advanced information society as the CA90501, U.S.A. Sales and installation of TE and R&M products world’s only comprehensive lightning protection company, through every kind of Phone:+1-310-320-1661 FAX:+1-310-618-6869 Manufacture, sales and installation of control consoles ● THAILAND Manufacture, sales and installation for obstruc- service, from lightning observation to lightning protection. □SANKOSHA ENGINEERING（THAILAND）CO., LTD. tion light systemsBB Building, 20th Floor, 54 Sukhumvit 21 ■Environmental countermeasures (Asoke) Road, Klongtoey-Nua, Wattana Bang- kok, 10110, Thailand Sales and installation of lightning strike posi- Phone:+66-2-258-1685 FAX:+66-2-047-3224 tioning devices INDONESIA Sales and installation of lightning detection ● and observation devices Lightning protection □P.T. SANKOSHA INDONESIAInterchange Toll Karawang Timur, Desa Anggadita, Sales of lightning and weather information solutions Klari Karawang 41371 Jawa Barat Indonesia Sales and installation for energy saving system Phone:+62-267-433-888 FAX:+62-267-433-666 devices ●SPD, GDT, semiconductor lightning pro- ● SOUTH KOREA tection elements □SANKOSHA KOREA CORPORATION Construction ■Special construction ●Power supply SPD, lightning transformers 1609 STX-W Tower Guro-dong,90,Gyeoninnno-53,Guro-gu,Seoul,Korea business Electrical construction ●Earthing enhancing compounds, Environmental Phone:+82-2-6124-3777 FAX:+82-2-6124-3779 licences ■General construction 　earthing electrodes, lightning - ● VIETNAM Construction work, electrical communications 　proof cables countermeasure □SANKOSHA VIETNAM construction, building construction, etc. ●Lightning protection 6th Floor, Thang Long Tower, 98A Nguy Nhu 　consulting solutions Kontum Str, Thanh Xuan Dist, Hanoi S.R. Vietnam Phone:+84-4-3208-0004 FAX:+84-4-3208-0002 Main Central government ministries ‒ organizations ‒ local prefec- TOTAL ●Lightning strike positioning devices CHINA customers● tures, cities and towns/ Electrical and gas companies/ oil ●Lightning detection and observa- □GUANGZHOU SANKOSHA LIGHTNING companies ‒ oil storage facilities/ Railroad companies ‒ SOLUTION tion devices PROTECTION TECHNOLOGY CO., LTD signal manufacturers/ Telecommunications companies ‒ ●Lightning and weather information 3rd floor A2 plant Wan An Industry Park, mobile telephone companies/ Manufacturers (electrical ‒ Tele- No110, Lanbei Road Lan He town, Pan Yu ●Energy saving system products District, Guangzhou City, Guangdong, China telecommunications ‒ general)/ Constructors (electrical ‒ communications Phone:+86-20-34969113 FAX:+86-20-34969184 telecommunication)/ Hospitals ‒ universities ‒ trading □JYUNKOH TECHNOLOGY INC. companies ‒ broadcasting ‒ leisurenetwork solutions Yaxi town Gaochun County Nanjing City China Phone:+86-25-57843066 FAX:+86-25-57843990 ●Optical termination boards, optical closures ISO accreditation□SANKOSHA HONG KONG LIMITED ●MDF, IDF, terminal boards (TE prod- Flat 11 & 12A, 9/F., Shatin Galleria, 18-24 ucts, R&M products) Shan Mei Street, Fotan, Shatin, New Territories,. ●Control consoles Kowloon, Hong Kong. ●Obstruction light systems Phone: + 85-2-2890-1788 FAX: +85-2-2890-1798 ■Domestic Branches in JAPAN □Sagami Techno Centre 1-1-12 Miyashimo Sagamihara-shi,Kanagawa　JAPAN □Hokkaido Sales Branch Sapporo-shi JAPAN □Tohoku Sales Branch Sendai-shi JAPAN □Chubu Sales Branch Nagoya-Shi JAPAN □Kansai Sales Branch Osaka-shi JAPAN □Chugoku Sales Branch Hiroshima-shi JAPAN ■March, 1998 Quality Management System ISO 9001 accredited □Shikoku Sales Office Takamatsu-shi JAPAN Registration No: JQA-2218 □Kyushu Sales Branch Fukuoka-shi JAPAN ■October, 2002 Environmental Management System ISO 14001 accredited Registration No: JQA-EM2683 2 3

Our total solution encompasses the three core Company Profile businesses of lightning protection, Telecommunications Name SANKOSHA Corporation Businesses ■Lightning protectionPresident Masayoshi Ito Manufacture and sales of SPD, GDT and semi- Founded April, 1930 conductor lightning protection elements and environmental countermeasures. Paid-in Capital ¥975,000,000 Manufacture, sales and installation of power supply protective devices and lightning transformers Employees 893 (Group total) (2016.3) Manufacture, sales and installation of earthing At Sankosha, we have worked to protect people and society from natural disasters Address ■Head Office enhancing compounds, earth electrodes, and 4-3-8 Osaki, Shinagawa-ku, Tokyo 141-0032 through our core businesses of lightning protection, telecommunications and environ- Phone:+81-3-3491-7181 Fax:+81-3-3494-7574 lightning-proof cablesLightning protection consulting mental countermeasures. ■Overseas Offices U.S.A. ■Telecommunications network solutions● Not only in Japan, but around the globe, we at Sankosha continue to work with our □SANKOSHA U.S.A., INC. Manufacture, sales and installation of optical 406 Amapola Avenue, Suite 135, Torrance, wiring boards, optical closures, MDF, and IDF customers to deliver safety and security to an advanced information society as the CA90501, U.S.A. Sales and installation of TE and R&M products world’s only comprehensive lightning protection company, through every kind of Phone:+1-310-320-1661 FAX:+1-310-618-6869 Manufacture, sales and installation of control consoles ● THAILAND Manufacture, sales and installation for obstruc- service, from lightning observation to lightning protection. □SANKOSHA ENGINEERING（THAILAND）CO., LTD. tion light systemsBB Building, 20th Floor, 54 Sukhumvit 21 ■Environmental countermeasures (Asoke) Road, Klongtoey-Nua, Wattana Bang- kok, 10110, Thailand Sales and installation of lightning strike posi- Phone:+66-2-258-1685 FAX:+66-2-047-3224 tioning devices INDONESIA Sales and installation of lightning detection ● and observation devices Lightning protection □P.T. SANKOSHA INDONESIAInterchange Toll Karawang Timur, Desa Anggadita, Sales of lightning and weather information solutions Klari Karawang 41371 Jawa Barat Indonesia Sales and installation for energy saving system Phone:+62-267-433-888 FAX:+62-267-433-666 devices ●SPD, GDT, semiconductor lightning pro- ● SOUTH KOREA tection elements □SANKOSHA KOREA CORPORATION Construction ■Special construction ●Power supply SPD, lightning transformers 1609 STX-W Tower Guro-dong,90,Gyeoninnno-53,Guro-gu,Seoul,Korea business Electrical construction ●Earthing enhancing compounds, Environmental Phone:+82-2-6124-3777 FAX:+82-2-6124-3779 licences ■General construction 　earthing electrodes, lightning - ● VIETNAM Construction work, electrical communications 　proof cables countermeasure □SANKOSHA VIETNAM construction, building construction, etc. ●Lightning protection 6th Floor, Thang Long Tower, 98A Nguy Nhu 　consulting solutions Kontum Str, Thanh Xuan Dist, Hanoi S.R. Vietnam Phone:+84-4-3208-0004 FAX:+84-4-3208-0002 Main Central government ministries ‒ organizations ‒ local prefec- TOTAL ●Lightning strike positioning devices CHINA customers● tures, cities and towns/ Electrical and gas companies/ oil ●Lightning detection and observa- □GUANGZHOU SANKOSHA LIGHTNING companies ‒ oil storage facilities/ Railroad companies ‒ SOLUTION tion devices PROTECTION TECHNOLOGY CO., LTD signal manufacturers/ Telecommunications companies ‒ ●Lightning and weather information 3rd floor A2 plant Wan An Industry Park, mobile telephone companies/ Manufacturers (electrical ‒ Tele- No110, Lanbei Road Lan He town, Pan Yu ●Energy saving system products District, Guangzhou City, Guangdong, China telecommunications ‒ general)/ Constructors (electrical ‒ communications Phone:+86-20-34969113 FAX:+86-20-34969184 telecommunication)/ Hospitals ‒ universities ‒ trading □JYUNKOH TECHNOLOGY INC. companies ‒ broadcasting ‒ leisurenetwork solutions Yaxi town Gaochun County Nanjing City China Phone:+86-25-57843066 FAX:+86-25-57843990 ●Optical termination boards, optical closures ISO accreditation□SANKOSHA HONG KONG LIMITED ●MDF, IDF, terminal boards (TE prod- Flat 11 & 12A, 9/F., Shatin Galleria, 18-24 ucts, R&M products) Shan Mei Street, Fotan, Shatin, New Territories,. ●Control consoles Kowloon, Hong Kong. ●Obstruction light systems Phone: + 85-2-2890-1788 FAX: +85-2-2890-1798 ■Domestic Branches in JAPAN □Sagami Techno Centre 1-1-12 Miyashimo Sagamihara-shi,Kanagawa　JAPAN □Hokkaido Sales Branch Sapporo-shi JAPAN □Tohoku Sales Branch Sendai-shi JAPAN □Chubu Sales Branch Nagoya-Shi JAPAN □Kansai Sales Branch Osaka-shi JAPAN □Chugoku Sales Branch Hiroshima-shi JAPAN ■March, 1998 Quality Management System ISO 9001 accredited □Shikoku Sales Office Takamatsu-shi JAPAN Registration No: JQA-2218 □Kyushu Sales Branch Fukuoka-shi JAPAN ■October, 2002 Environmental Management System ISO 14001 accredited Registration No: JQA-EM2683 2 3

Why comprehensive lightning countermeasures are necessary As experts in comprehensive lightning countermeasures, we at Sankosha work to address our customers’ diverse needs. What is lightning? ◇ How lightning happens ◇ Increased lightning damage Lightning is a natural phenomenon, similar to static In the information society, communication equipment has become more compact because of the spread of digital communication electricity. equipment that uses many electronic parts and components, and it tends to be more vulnerable lightning than analogue equipment. Lightning occurs when there are unstable atmospheric In the ICT society, communication networks are spreading everywhere, and so are many types of communication cables. This conditions. When cold air enters the upper atmosphere and Movement of energy means that there are many more entry routes for lightning, and a greater possibility of suffering lightning damage. there are updrafts caused by the earth’s surface being (lightning: cloud to cloud) Lightning surge entry routes can vary greatly depending on the conditions, and this is why it is important to cover every imaginable heated by the sun, then thunderclouds will be formed. When entry route when planning lightning countermeasures. the temperature inside the cloud is between minus 10ºC and minus 20ºC, droplets of ice are formed and collide with each other in the updrafts. When they collide, charge separation Movement of energy Entry via antenna Lightning rod (lightning: cloud to ground) occurs and small light ice droplets become positively charged Antenna Lightning surge entry Human injury and are carried into upper atmosphere by updrafts. due to effects of electromagnetic induction Lifelines damage or cut The larger droplets become negatively charged and accumu- Signal line Public utility services stop late at lower levels due to the gravity. When the negative Entry via signal line charge at the base of the cloud reaches a certain value as the Power supply line Production facilities damage stop Telephone line thundercloud develops, electrical discharge occurs within the Cultural heritage sites damage or destruction cloud and between the cloud and the surface of the earth. Entry via telephone line Entry via power PC data damage or destructionThis is lightning. Since the release of energy takes place in an supply line Lightning damage to ordinary households instant, it is accompanied by intense light (lightning) and sound (thunder). Earth Entry via earth Many other kinds of damage are possible! ◇ Summer lightning and winter lightning ◇ Direct lightning and induced lightning Winter lightning can sometimes discharge more energy than summer lightning Direct lightning is that lightning directly strikes buildings and other objects on the ground. When an extremely large lightning Most lightning occurs in the summer (summer lightning), but it can also occur in winter, and is called winter lightning. current is formed, it changes not only into electrical energy but also into heat and mechanical energy momentarily, and is Compared to summer lightning, winter lightning forms in comparatively low thunderclouds, so lightning strikes tend to concentrate on discharged with explosive force, causing damage to various types of equipment and machinery. buildings and structures. Also, the electrical discharge during these lightning strikes lasts for a comparatively long time, releasing a great Induced lightning is lightning surge (transient abnormally high voltage current) that is caused from communication and electrical amount of energy, with a tendency for greater lightning damage. power lines, and can enter via power supply lines, communication lines and earthing, etc. Most lightning damage is caused by induced lightning which destroys communication equipment and computers, and sometimes even power supplies, and therefore, Example of summer lightning (downward discharge) Example of winter lightning (upward discharge) the number of cases of lightning damage has risen dramatically in recent years. Direct Direct lightning lightning strike in strike on buildings surrounding area Induced lightning caused by the flow of Direct Induced lightning currentCommunication lightning lightning cables strike on cables Power supply cables *Winter lightning is mostly upward discharge Earth electropotential rise Lightning can strike anywhere. Strong magnetic fields and voltage are generated in the areas surrounding a lightning strike point, and can become the cause of induced lightning. 4 5 中国語版では中国のマップに変更

Why comprehensive lightning countermeasures are necessary As experts in comprehensive lightning countermeasures, we at Sankosha work to address our customers’ diverse needs. What is lightning? ◇ How lightning happens ◇ Increased lightning damage Lightning is a natural phenomenon, similar to static In the information society, communication equipment has become more compact because of the spread of digital communication electricity. equipment that uses many electronic parts and components, and it tends to be more vulnerable lightning than analogue equipment. Lightning occurs when there are unstable atmospheric In the ICT society, communication networks are spreading everywhere, and so are many types of communication cables. This conditions. When cold air enters the upper atmosphere and Movement of energy means that there are many more entry routes for lightning, and a greater possibility of suffering lightning damage. there are updrafts caused by the earth’s surface being (lightning: cloud to cloud) Lightning surge entry routes can vary greatly depending on the conditions, and this is why it is important to cover every imaginable heated by the sun, then thunderclouds will be formed. When entry route when planning lightning countermeasures. the temperature inside the cloud is between minus 10ºC and minus 20ºC, droplets of ice are formed and collide with each other in the updrafts. When they collide, charge separation Movement of energy Entry via antenna Lightning rod (lightning: cloud to ground) occurs and small light ice droplets become positively charged Antenna Lightning surge entry Human injury and are carried into upper atmosphere by updrafts. due to effects of electromagnetic induction Lifelines damage or cut The larger droplets become negatively charged and accumu- Signal line Public utility services stop late at lower levels due to the gravity. When the negative Entry via signal line charge at the base of the cloud reaches a certain value as the Power supply line Production facilities damage stop Telephone line thundercloud develops, electrical discharge occurs within the Cultural heritage sites damage or destruction cloud and between the cloud and the surface of the earth. Entry via telephone line Entry via power PC data damage or destructionThis is lightning. Since the release of energy takes place in an supply line Lightning damage to ordinary households instant, it is accompanied by intense light (lightning) and sound (thunder). Earth Entry via earth Many other kinds of damage are possible! ◇ Summer lightning and winter lightning ◇ Direct lightning and induced lightning Winter lightning can sometimes discharge more energy than summer lightning Direct lightning is that lightning directly strikes buildings and other objects on the ground. When an extremely large lightning Most lightning occurs in the summer (summer lightning), but it can also occur in winter, and is called winter lightning. current is formed, it changes not only into electrical energy but also into heat and mechanical energy momentarily, and is Compared to summer lightning, winter lightning forms in comparatively low thunderclouds, so lightning strikes tend to concentrate on discharged with explosive force, causing damage to various types of equipment and machinery. buildings and structures. Also, the electrical discharge during these lightning strikes lasts for a comparatively long time, releasing a great Induced lightning is lightning surge (transient abnormally high voltage current) that is caused from communication and electrical amount of energy, with a tendency for greater lightning damage. power lines, and can enter via power supply lines, communication lines and earthing, etc. Most lightning damage is caused by induced lightning which destroys communication equipment and computers, and sometimes even power supplies, and therefore, Example of summer lightning (downward discharge) Example of winter lightning (upward discharge) the number of cases of lightning damage has risen dramatically in recent years. Direct Direct lightning lightning strike in strike on buildings surrounding area Induced lightning caused by the flow of Direct Induced lightning currentCommunication lightning lightning cables strike on cables Power supply cables *Winter lightning is mostly upward discharge Earth electropotential rise Lightning can strike anywhere. Strong magnetic fields and voltage are generated in the areas surrounding a lightning strike point, and can become the cause of induced lightning. 4 5 中国語版では中国のマップに変更

Why comprehensive lightning countermeasures are necessary IEC lightning countermeasure overview Comprehensive Lightning Countermeasure Systems ◇ Lightning Protection Zones (LPZ) ◇ Total solutions IEC classifies the different levels of lightning effect into External lightning Air termination systems Lightning Protection Zones (LPZ), and by installing suitable SPD1 Class I surge protection device GW-G protection systems Down conductor systems● Main earth terminal board External LPS SPD at each zone boundary, the damage to equipment can SPD2 Class Ⅱ surge protection device (bonding bar) Earth termination systemsGW be minimized. SPD Communications surge ● Earth terminal board protection device (bonding bar) Lightning protection for buildings, Equipotential bonding Internal lightning (including use of SPD) structures and human life Lightning Protection protection systemsLPZ 0A LPS Internal LPS Safe separation distance Lightning Protection Zone (LPZ) Zones and SPD classes assurance and categories LPZ0A LPZ 0A Comprehensive lightning Lightning Protection A zone outdoors and outside the LPZ 0B protection system protection range of an external Zones (LPZ) LPZ 0 lightning protection system. When Lightning surge protection A Lightning surgestructures are struck directly by LPZ 0A and for electrical and electronic Electromagnetic shielding lightning, they may be subjected to Class Ⅰ,Ⅱ reduction designthe full lightning current. the boundary SPD equipment inside buildings LPZ 1 LEMP reduction and wiring routing LPMS A zone outdoors and within the between Category Earth termination and protection range of an external C2, D1 LPZ LPZ 20B equipotential bonding LPZ 0 l i g h t n i n g p r o t e c t i o n s y s t em . LPZ 0B and SPD SPD B Structures are not struck by lightning LPZ 1 LPZ 3 directly, but may be subjected to Communi- SPD2 Protection for low voltage non-attenuated lightning charge. cation line GW LPZ 0B Lightning surgeSPD power distribution systemsreduction using SPD A zone indoors and within the protection All of these aspects need to be taken into consideration Reduction using SPD Protection for communications range of an external lightning protection SPD1 SPD1Power LPZ 1 system. Structures may be subjected to partial direct lightning strikes, but the The boundary Class Ⅱ, supply GW-G when planning lightning countermeasures. and signal lines effects of the lightning current and between LPZ1 Category line Mains earth electromagnetic fields are mitigated. and LPZ 2+ C2 LPZ 2 E A zone inside a building and where there is a need to mit igate the effects of l ightning current and The boundary Class Ⅱ,Ⅲ ◇ Comprehensive lightning protection system LPZ 3 electromagnetic fields to an even greater extent than in LPZ1. between LPZ2 Category As a comprehensive lightning protection company, Sankosha works to solve all kinds of problems caused by lightning strikes. and LPZ 3 C1,C2 ◇ Protecting against direct lightning strikes Lightning riskassessment Comprehensive lightning protection system flow IEC defines direct strike lightning current as having a 10/350 μs waveform. Lightning energy is represented by the area of the　 Investigation Proposal ‒ estimate waveform illustrated below. It can be seen that, compared against an inducted lightning current waveform (8/20 μs), this is an　 Construction Verification Maintenance We examine the risk ‒ contract extremely large force of energy. of lightning damage C o n s t r u c t i o n After the countermeasure proposal Finally, mainte- from field studies A proposal for the best countermeasure is work is carried has been implemented, a lightning nance is carried and drawings. offered, incorporating the customer’s needs. (In out, based on the surge counter is installed in order o u t ( t h o r ough Current some cases, the proposal may take the form of a agreed proposals. to verify its effectiveness. aftercare). Lightning strike chargeable evaluation test.) 100kA analysis data IEC defines direct strike lightning current as having a 10/350μs waveform. SPD performance marks (Classes, Categories) *This illustration is a representation only. Actual waveforms may differ. SPD performance mark samples Lightning risk assessment For direct lightning For induced lightning 50kA Our lightning risk diagnostic programs range from simple diagnoses to expert diagnoses. The simple diagnosis is available on CD For 10/350 μs lightning current For 8/20 μs lightning current Installed at LPZ 0/1 boundary Installed at LPZ1/2 boundary ROM. Based on the customer’s answers to approximately 20 questions, we prepare a diagnostic report. 20kA For low voltage power supplies Class Ⅰ Class Ⅱ ・Expert diagnosis We ask the customer for information that shows the conditions of to the local environment, electrical plant and equipment, For communications Time Category D1 Category C2 instrumentation, earthing systems, and management. Also, if equipment has been damaged or destroyed, the expert diagnosis will 0 0 20 350 （㎲） ‒ signal lines proceed more smoothly (where necessary, an on-site inspection will be conducted) with the manufacturer’s equipment damage ・Class Ⅰ and Class Ⅱ are test grades for low voltage power supply SPD. report. Based on the results of the diagnosis, we can determine the degree of lightning risk and propose the optimal ＝ Direct strike lightning 10/350 μs ‒ 100 kA waveform ・Categories D1 and C2 are test grades for communications and signals countermeasures.(Class Ⅰ, Category D1) (in addition, there are also Categories A, B, etc.) Induced lightning 8/20 μs ‒ 20 kA waveform ・Class Ⅲ test grade is by 1.2/50㎲・8/20㎲ combination waveforms.＝ ・Simple diagnosis ■ Lightning risk Power Communi- Power Communi-(Class Ⅱ, Category C2) diagnosis supply cations supply cations We examine five elements in order to assess lightning risk. Wiring board SPD SPD Wiring SPD SPDEquip- board Equip- a ment ment a. Local environmental conditions ◇ Setting of protection levels b. Air terminating systems Power Commu- Power Commu-supply nication supply nication b SPD SPD SPD SPD IEC stipulates four protection levels (lightning countermeasure levels), according to the importance of the building and equipment c. Communications and control systems e Equip- Equip-ment ment and the degree of hazard. d. Earth termination *1 Lightning current *1 The protection level can be selected by the contractor after considering e. Safety management systems Building A earthing Building A Building B earthing Building B Protection Protection peak value Max. current to SPDLevel efficiency (10/350μs) (10/350μs) the lightning risks. Lightning risk increases when there are Lightning risk increases when *2 d c cables extending to separately earthed there are cables extending to *2 Assuming 50% to earth, 50% to service line. buildings in the same site. other buildings.Ⅰ 98% 200kA 100kA Ⅱ 95% 150kA 75kA Ⅲ 90% 100kA 50kA Ⅳ 80% 100kA 50kA 6 7 Interrelated Interrelated External zone Internal zone

Why comprehensive lightning countermeasures are necessary IEC lightning countermeasure overview Comprehensive Lightning Countermeasure Systems ◇ Lightning Protection Zones (LPZ) ◇ Total solutions IEC classifies the different levels of lightning effect into External lightning Air termination systems Lightning Protection Zones (LPZ), and by installing suitable SPD1 Class I surge protection device GW-G protection systems Down conductor systems● Main earth terminal board External LPS SPD at each zone boundary, the damage to equipment can SPD2 Class Ⅱ surge protection device (bonding bar) Earth termination systemsGW be minimized. SPD Communications surge ● Earth terminal board protection device (bonding bar) Lightning protection for buildings, Equipotential bonding Internal lightning (including use of SPD) structures and human life Lightning Protection protection systemsLPZ 0A LPS Internal LPS Safe separation distance Lightning Protection Zone (LPZ) Zones and SPD classes assurance and categories LPZ0A LPZ 0A Comprehensive lightning Lightning Protection A zone outdoors and outside the LPZ 0B protection system protection range of an external Zones (LPZ) LPZ 0 lightning protection system. When Lightning surge protection A Lightning surgestructures are struck directly by LPZ 0A and for electrical and electronic Electromagnetic shielding lightning, they may be subjected to Class Ⅰ,Ⅱ reduction designthe full lightning current. the boundary SPD equipment inside buildings LPZ 1 LEMP reduction and wiring routing LPMS A zone outdoors and within the between Category Earth termination and protection range of an external C2, D1 LPZ LPZ 20B equipotential bonding LPZ 0 l i g h t n i n g p r o t e c t i o n s y s t em . LPZ 0B and SPD SPD B Structures are not struck by lightning LPZ 1 LPZ 3 directly, but may be subjected to Communi- SPD2 Protection for low voltage non-attenuated lightning charge. cation line GW LPZ 0B Lightning surgeSPD power distribution systemsreduction using SPD A zone indoors and within the protection All of these aspects need to be taken into consideration Reduction using SPD Protection for communications range of an external lightning protection SPD1 SPD1Power LPZ 1 system. Structures may be subjected to partial direct lightning strikes, but the The boundary Class Ⅱ, supply GW-G when planning lightning countermeasures. and signal lines effects of the lightning current and between LPZ1 Category line Mains earth electromagnetic fields are mitigated. and LPZ 2+ C2 LPZ 2 E A zone inside a building and where there is a need to mit igate the effects of l ightning current and The boundary Class Ⅱ,Ⅲ ◇ Comprehensive lightning protection system LPZ 3 electromagnetic fields to an even greater extent than in LPZ1. between LPZ2 Category As a comprehensive lightning protection company, Sankosha works to solve all kinds of problems caused by lightning strikes. and LPZ 3 C1,C2 ◇ Protecting against direct lightning strikes Lightning riskassessment Comprehensive lightning protection system flow IEC defines direct strike lightning current as having a 10/350 μs waveform. Lightning energy is represented by the area of the　 Investigation Proposal ‒ estimate waveform illustrated below. It can be seen that, compared against an inducted lightning current waveform (8/20 μs), this is an　 Construction Verification Maintenance We examine the risk ‒ contract extremely large force of energy. of lightning damage C o n s t r u c t i o n After the countermeasure proposal Finally, mainte- from field studies A proposal for the best countermeasure is work is carried has been implemented, a lightning nance is carried and drawings. offered, incorporating the customer’s needs. (In out, based on the surge counter is installed in order o u t ( t h o r ough Current some cases, the proposal may take the form of a agreed proposals. to verify its effectiveness. aftercare). Lightning strike chargeable evaluation test.) 100kA analysis data IEC defines direct strike lightning current as having a 10/350μs waveform. SPD performance marks (Classes, Categories) *This illustration is a representation only. Actual waveforms may differ. SPD performance mark samples Lightning risk assessment For direct lightning For induced lightning 50kA Our lightning risk diagnostic programs range from simple diagnoses to expert diagnoses. The simple diagnosis is available on CD For 10/350 μs lightning current For 8/20 μs lightning current Installed at LPZ 0/1 boundary Installed at LPZ1/2 boundary ROM. Based on the customer’s answers to approximately 20 questions, we prepare a diagnostic report. 20kA For low voltage power supplies Class Ⅰ Class Ⅱ ・Expert diagnosis We ask the customer for information that shows the conditions of to the local environment, electrical plant and equipment, For communications Time Category D1 Category C2 instrumentation, earthing systems, and management. Also, if equipment has been damaged or destroyed, the expert diagnosis will 0 0 20 350 （㎲） ‒ signal lines proceed more smoothly (where necessary, an on-site inspection will be conducted) with the manufacturer’s equipment damage ・Class Ⅰ and Class Ⅱ are test grades for low voltage power supply SPD. report. Based on the results of the diagnosis, we can determine the degree of lightning risk and propose the optimal ＝ Direct strike lightning 10/350 μs ‒ 100 kA waveform ・Categories D1 and C2 are test grades for communications and signals countermeasures.(Class Ⅰ, Category D1) (in addition, there are also Categories A, B, etc.) Induced lightning 8/20 μs ‒ 20 kA waveform ・Class Ⅲ test grade is by 1.2/50㎲・8/20㎲ combination waveforms.＝ ・Simple diagnosis ■ Lightning risk Power Communi- Power Communi-(Class Ⅱ, Category C2) diagnosis supply cations supply cations We examine five elements in order to assess lightning risk. Wiring board SPD SPD Wiring SPD SPDEquip- board Equip- a ment ment a. Local environmental conditions ◇ Setting of protection levels b. Air terminating systems Power Commu- Power Commu-supply nication supply nication b SPD SPD SPD SPD IEC stipulates four protection levels (lightning countermeasure levels), according to the importance of the building and equipment c. Communications and control systems e Equip- Equip-ment ment and the degree of hazard. d. Earth termination *1 Lightning current *1 The protection level can be selected by the contractor after considering e. Safety management systems Building A earthing Building A Building B earthing Building B Protection Protection peak value Max. current to SPDLevel efficiency (10/350μs) (10/350μs) the lightning risks. Lightning risk increases when there are Lightning risk increases when *2 d c cables extending to separately earthed there are cables extending to *2 Assuming 50% to earth, 50% to service line. buildings in the same site. other buildings.Ⅰ 98% 200kA 100kA Ⅱ 95% 150kA 75kA Ⅲ 90% 100kA 50kA Ⅳ 80% 100kA 50kA 6 7 Interrelated Interrelated External zone Internal zone

Examples of lightning protection solutions Lightning protection …Power supply SPD…SPD for communication equipment Lightning protection …Power supply SPD…SPD for communication equipment for wind farms for solar power installations …SPD for LAN The biggest cause of damage to windmills is natural causes, Solar power is attracting attention as a source of clean energy. However, solar especially lightning strike is the most common cause of all. power generating systems that are set up outdoors are prone to lightning It is no exaggeration to say that lightning strike is the biggest damage, and lightning protection countermeasures are essential to their threat to wind farms. efficient operation. With solid technical skill that has won the industry’s top share, Sankosha’s countermeasures prevent damage from spreading to power Lightning tower conditioners and other important equipment, thereby reducing the risk of low Lightning rod capacity utilization.Wind turbine lightning Windmill Obstruction light measurement device (medium intensity ‒ SC-AT-WT-01 high intensity) P.88 Generator Connection box Pyranometer Control house Thermometer Power distribution ‒ Obstruction light Communication system (low intensity) Equipment room DC Grid interconnection DC/AC power conditioner substation Distribution board Distribution board Connection Monitor Communication to other windmills control lines (where possible) Power lines Network Voltage regulator AC Earthing enhancing compound AC (SAN-EARTH) Earthing enhancing compound (SAN-EARTH) Power supply SPD SPD for communication SPD for communicationequipment Lightning transformers Earthing enhancing Power supply SPD equipment SPD for LAN Earthing enhancing ® compound (SAN-EARTH) Obstruction light compound (SAN-EARTH) MZS series etc. Smart SPD SMH-CLP series etc. Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. LAN-CAT5e-P+Ⅱetc. P.18 P.37 P.76 P.79 P.89 P.24 P.37 P.44 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 8 9 Examples of lightning protection solutions Lightning protection for wind farms and solar power installations

Examples of lightning protection solutions Lightning protection …Power supply SPD…SPD for communication equipment Lightning protection …Power supply SPD…SPD for communication equipment for wind farms for solar power installations …SPD for LAN The biggest cause of damage to windmills is natural causes, Solar power is attracting attention as a source of clean energy. However, solar especially lightning strike is the most common cause of all. power generating systems that are set up outdoors are prone to lightning It is no exaggeration to say that lightning strike is the biggest damage, and lightning protection countermeasures are essential to their threat to wind farms. efficient operation. With solid technical skill that has won the industry’s top share, Sankosha’s countermeasures prevent damage from spreading to power Lightning tower conditioners and other important equipment, thereby reducing the risk of low Lightning rod capacity utilization.Wind turbine lightning Windmill Obstruction light measurement device (medium intensity ‒ SC-AT-WT-01 high intensity) P.88 Generator Connection box Pyranometer Control house Thermometer Power distribution ‒ Obstruction light Communication system (low intensity) Equipment room DC Grid interconnection DC/AC power conditioner substation Distribution board Distribution board Connection Monitor Communication to other windmills control lines (where possible) Power lines Network Voltage regulator AC Earthing enhancing compound AC (SAN-EARTH) Earthing enhancing compound (SAN-EARTH) Power supply SPD SPD for communication SPD for communicationequipment Lightning transformers Earthing enhancing Power supply SPD equipment SPD for LAN Earthing enhancing ® compound (SAN-EARTH) Obstruction light compound (SAN-EARTH) MZS series etc. Smart SPD SMH-CLP series etc. Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. LAN-CAT5e-P+Ⅱetc. P.18 P.37 P.76 P.79 P.89 P.24 P.37 P.44 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 8 9 Examples of lightning protection solutions Lightning protection for wind farms and solar power installations

Examples of lightning protection solutions Lightning protection …Power supply SPD …Power supply SPD…SPD for communication equipment Lightning protection …SPD for communication equipment for buildings …SPD for LAN for factories With the incorporation of ICT into offices and the spread of Factory production line stoppages due to lightning damage can cause extremely serious losses. There are many examples of network equip- networks over wider areas, the threat posed by lightning is Lightning rod ment connected by communication cables being damaged by induced lightning. Factories contain a great deal of equipment of many types. Each type of equipment requires its own countermeasure, and Sankosha addresses this need with a rich lineup of lightning protection products. growing stronger, and lightning protection countermeasures need to be considered, not only floor by floor, but for whole buildings. At Sankosha, we are able to propose comprehensive lightning solutions that effectively com- Section switch bine external lightning protection sys- High voltage receiving equipment B block tems and lightning protection for elec- External highvoltage cubicle trical and electronic systems, etc. High voltage Lightning conductor Low voltage transformer distribution board High voltage Cooling tower distribution lines Lightningrod Lighting equipment Pole Lightning Communication GW-F conductor lines distribution panel GW-F PC Communications distribution equipment panel Ground, etc. Ground Pole SPD for INV M grounding Fire alarmequipment Air conditioners Communications equipment Low voltage power lines Control panel Weak current External lighting communications A block equipment M Floor grounding SPD built-inAir Distribution SPD conditioners boardIDF built-inI Weak current D-F communications GW Main manufacturing F Lightning equipment equipment transformer Fire alarm equipment SPD built-in MDF Lighting M equipment Communications PC Power Electricity board G S PrinterW AN-E G ARTH ring grounding electrod SA eN-EARTH ring grounding electrode Power supply SPD Power supply SPD SPD for communicationequipment Smart SPD®SMBP-MZSR series etc. Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. P.24 P.24 P.37 SPD for communication SPD for SPD for LAN Earthing enhancing SPD for SPD for fireequipment KRONE terminals Lightning transformers KRONE terminals alarm equipmentcompound (SAN-EARTH) Earthing SPD Lightning transformers Earthing enhancing ® compound (SAN-EARTH)Smart SPD SMH-CLP series etc. Smart SPD®SMB-KRAPS１ LAN-CAT5e-P+Ⅱetc. Smart SPD®SMB-KRAPS１ HOWL2 SMB-P・R series KR-APS1 KR-APS1 P.37 P.40,41 P.44 P.77 P.79 P.40,41 P.42 P.58 P.76 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 10 11 ̶ Examples of lightning protection solutions Lightning protection for buildings and factories

Examples of lightning protection solutions Lightning protection …Power supply SPD …Power supply SPD…SPD for communication equipment Lightning protection …SPD for communication equipment for buildings …SPD for LAN for factories With the incorporation of ICT into offices and the spread of Factory production line stoppages due to lightning damage can cause extremely serious losses. There are many examples of network equip- networks over wider areas, the threat posed by lightning is Lightning rod ment connected by communication cables being damaged by induced lightning. Factories contain a great deal of equipment of many types. Each type of equipment requires its own countermeasure, and Sankosha addresses this need with a rich lineup of lightning protection products. growing stronger, and lightning protection countermeasures need to be considered, not only floor by floor, but for whole buildings. At Sankosha, we are able to propose comprehensive lightning solutions that effectively com- Section switch bine external lightning protection sys- High voltage receiving equipment B block tems and lightning protection for elec- External highvoltage cubicle trical and electronic systems, etc. High voltage Lightning conductor Low voltage transformer distribution board High voltage Cooling tower distribution lines Lightningrod Lighting equipment Pole Lightning Communication GW-F conductor lines distribution panel GW-F PC Communications distribution equipment panel Ground, etc. Ground Pole SPD for INV M grounding Fire alarmequipment Air conditioners Communications equipment Low voltage power lines Control panel Weak current External lighting communications A block equipment M Floor grounding SPD built-inAir Distribution SPD conditioners boardIDF built-inI Weak current D-F communications GW Main manufacturing F Lightning equipment equipment transformer Fire alarm equipment SPD built-in MDF Lighting M equipment Communications PC Power Electricity board G S PrinterW AN-E G ARTH ring grounding electrod SA eN-EARTH ring grounding electrode Power supply SPD Power supply SPD SPD for communicationequipment Smart SPD®SMBP-MZSR series etc. Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. P.24 P.24 P.37 SPD for communication SPD for SPD for LAN Earthing enhancing SPD for SPD for fireequipment KRONE terminals Lightning transformers KRONE terminals alarm equipmentcompound (SAN-EARTH) Earthing SPD Lightning transformers Earthing enhancing ® compound (SAN-EARTH)Smart SPD SMH-CLP series etc. Smart SPD®SMB-KRAPS１ LAN-CAT5e-P+Ⅱetc. Smart SPD®SMB-KRAPS１ HOWL2 SMB-P・R series KR-APS1 KR-APS1 P.37 P.40,41 P.44 P.77 P.79 P.40,41 P.42 P.58 P.76 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 10 11 ̶ Examples of lightning protection solutions Lightning protection for buildings and factories

Examples of lightning protection solutions Lightning protection Lightning protection …Power supply SPD…SPD for communication equipment for railways for fire prevention equipment …SPD for LAN…SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ Railways are a lifeline that is used by many people. Railway signal communications equipment impacts Fire and smoke alarms are essential equipment for our safety, and are mandatory in ordinary houses and people’s lives directly, and needs to have highly reliable lightning protection in place. Backed up by light- social welfare facilities, etc. If this important equipment malfunctions due to lightning damage and generates ning protection technology developed and honed over many years, as well as a considerable track record, an alarm at the wrong time, it can cause significant distress to the people in the building. By providing the Sankosha lightning protection products provide support for railway safety. ideal lightning protection solutions for fire prevention equipment, Sankosha continues to contribute to everyone’s safety and security. TV shared reception system Smoke detector Heat Server room detector Monitoring cameras Distribution board Card remote control Server Router Security receiver Station building Modem PC Sound equipment Signals Water cannon flame detector Signal equipment room Emergency alarm Jetting head for nitrogen Track circuit fire extinguishersCommunications equipment room Monitoring cameras Level crossing Foam head Train radio Low voltageFire prevention center Fire extinguisher distribution board pump Fire alarm control panel Nitrogen fire extinguisher ITV cylinders camera controller Earthing enhancing Power supply SPD SPD for communication SPD for LAN SPD for co-axial SPD for power supply line, signal line etc. P.59～ Lightning transformers equipment connectors compound (SAN-EARTH) Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. LAN-CAT5e-P+Ⅱetc. CX-E-60 etc. Note: Required specifications for SPD are different by each country's railway system. P.77 P.79 P.24 P.37 P.44 P.47 Note: Please consult our experts for details on lightning protection systems. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. 12 13 Examples of lightning protection solutions Lightning protection for railways and fire prevention equipment

Examples of lightning protection solutions Lightning protection Lightning protection …Power supply SPD…SPD for communication equipment for railways for fire prevention equipment …SPD for LAN…SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ Railways are a lifeline that is used by many people. Railway signal communications equipment impacts Fire and smoke alarms are essential equipment for our safety, and are mandatory in ordinary houses and people’s lives directly, and needs to have highly reliable lightning protection in place. Backed up by light- social welfare facilities, etc. If this important equipment malfunctions due to lightning damage and generates ning protection technology developed and honed over many years, as well as a considerable track record, an alarm at the wrong time, it can cause significant distress to the people in the building. By providing the Sankosha lightning protection products provide support for railway safety. ideal lightning protection solutions for fire prevention equipment, Sankosha continues to contribute to everyone’s safety and security. TV shared reception system Smoke detector Heat Server room detector Monitoring cameras Distribution board Card remote control Server Router Security receiver Station building Modem PC Sound equipment Signals Water cannon flame detector Signal equipment room Emergency alarm Jetting head for nitrogen Track circuit fire extinguishersCommunications equipment room Monitoring cameras Level crossing Foam head Train radio Low voltageFire prevention center Fire extinguisher distribution board pump Fire alarm control panel Nitrogen fire extinguisher ITV cylinders camera controller Earthing enhancing Power supply SPD SPD for communication SPD for LAN SPD for co-axial SPD for power supply line, signal line etc. P.59～ Lightning transformers equipment connectors compound (SAN-EARTH) Smart SPD®SMBP-MZSR series etc. Smart SPD®SMH-CLP series etc. LAN-CAT5e-P+Ⅱetc. CX-E-60 etc. Note: Required specifications for SPD are different by each country's railway system. P.77 P.79 P.24 P.37 P.44 P.47 Note: Please consult our experts for details on lightning protection systems. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. 12 13 Examples of lightning protection solutions Lightning protection for railways and fire prevention equipment

Examples of lightning protection solutions Lightning protection …Power supply SPD…SPD for communication equipment Lightning protection …SPD for LAN…SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ for dams …SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ for houses …Power supply SPD…SPD for communication equipment Dam facilities’ networks are spread over wide areas and are considered highly vulnerable to lightning surges. In addition to Lightning damage does not only occur in office buildings and factories. It can happen in Nearby lightning strike preventing flooding in the event of heavy rain, dams also play an important role in the stable management of water ordinary houses. All manner of electrical household appliances, resources. In order to ensure that these highly important public utilities continue to function properly, they need highly reli- including refrigerators, telephones, TVs and computers, can be able lightning protec- damaged by lightning. Sankosha provides protection for your tion. Sankosha pro- Weather monitoringdevice Speakers home by delivering lightning protection equipment that can vides ideal solutions, Control room Mooring equipment be installed easily without requiring any construction work. Surge enters via cables backed up by original High voltage distribution wires technology and long years of expertise. Antenna struck by lightning Low voltage Elevator Water level gauge distribution wires Gate control panel Antenna Distribution board Communicationlines CATV circuit Gate Pole-mountedIntercom transformer Seismometer CATVsubscriber protective device TV PC Spillway Telephone PC Subscriber protective device Inspection tunnel Water level station W Hot water Refrigerator TV Router - H apparatus PC modem M Telephone Distributionboard Water level gauge sensor CATV modem Revolving light Antenna Power supply SPD SPD for communicationequipment Surge enters Smart SPD®SMBP-MZSR series etc. via ground Siren Smart SPD®SMH-CLP series etc. control Speakers SAN-EARTH panel Lightning Distribution Discharge transformers board warning Sound collectingequipment microphone DC P.24 P.37 power supply Water level Telemetry gauge transducer SPD for co-axial monitoring connectors Lightning transformers SPD for LAN SPD for TV Earthing enhancingsystem compound (SAN-EARTH) N-JP-1S LAN-CAT5e-P+Ⅱetc. F-JP-1W Water level gauge P.50 P.77 P.44 P.53 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 14 15 Examples of lightning protection solutions Lightning protection for dams and houses CCoonnttrrooll ddeevviicceess CCoonnttrrooll ddeevviicceess

Examples of lightning protection solutions Lightning protection …Power supply SPD…SPD for communication equipment Lightning protection …SPD for LAN…SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ for dams …SPD for ｃｏ-ａｘｉａｌ ｃｏｎｎｅｃｔｏｒｓ for houses …Power supply SPD…SPD for communication equipment Dam facilities’ networks are spread over wide areas and are considered highly vulnerable to lightning surges. In addition to Lightning damage does not only occur in office buildings and factories. It can happen in Nearby lightning strike preventing flooding in the event of heavy rain, dams also play an important role in the stable management of water ordinary houses. All manner of electrical household appliances, resources. In order to ensure that these highly important public utilities continue to function properly, they need highly reli- including refrigerators, telephones, TVs and computers, can be able lightning protec- damaged by lightning. Sankosha provides protection for your tion. Sankosha pro- Weather monitoringdevice Speakers home by delivering lightning protection equipment that can vides ideal solutions, Control room Mooring equipment be installed easily without requiring any construction work. Surge enters via cables backed up by original High voltage distribution wires technology and long years of expertise. Antenna struck by lightning Low voltage Elevator Water level gauge distribution wires Gate control panel Antenna Distribution board Communicationlines CATV circuit Gate Pole-mountedIntercom transformer Seismometer CATVsubscriber protective device TV PC Spillway Telephone PC Subscriber protective device Inspection tunnel Water level station W Hot water Refrigerator TV Router - H apparatus PC modem M Telephone Distributionboard Water level gauge sensor CATV modem Revolving light Antenna Power supply SPD SPD for communicationequipment Surge enters Smart SPD®SMBP-MZSR series etc. via ground Siren Smart SPD®SMH-CLP series etc. control Speakers SAN-EARTH panel Lightning Distribution Discharge transformers board warning Sound collectingequipment microphone DC P.24 P.37 power supply Water level Telemetry gauge transducer SPD for co-axial monitoring connectors Lightning transformers SPD for LAN SPD for TV Earthing enhancingsystem compound (SAN-EARTH) N-JP-1S LAN-CAT5e-P+Ⅱetc. F-JP-1W Water level gauge P.50 P.77 P.44 P.53 P.79 Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Note: This lightning countermeasure diagram is for the purposes of showing the required SPD items, and does not necessarily represent an accurate lightning countermeasure. Please consult our experts for details on lightning protection systems. Please consult our experts for details on lightning protection systems. 14 15 Examples of lightning protection solutions Lightning protection for dams and houses CCoonnttrrooll ddeevviicceess CCoonnttrrooll ddeevviicceess

Product lineup …IEC Compliant …RoHS Compliant RoHS mark means not to contain the following 6 materials:Cadmium, Lead, Mercury, Hexavalent …UL Compliant chromium, Polybrominated biphenyl, Polybrominated diphenyl ether (Excluding 2011/65 / EC) 1 Lightning protection products P18～ Power supply SPD IEC ClassⅠ (Type 1) …18 SPD for railway…………………59 Power supply SPD IEC ClassⅡ (Type 2) …22 Lightning protective elements…63 Power supply SPD IEC ClassⅢ (Type 3) …36 GDT (2-electrode tubes) ……65 SPD for communication equipment…37 GDT (3-electrode tubes) ……70 SPD for LAN ……………………44 Other lightning protective elements…73 SPD for co-axial connectors…47 Lightning transformers………76 Earthing SPD (earth balancer) …58 2 Earthing related products P78～ Earthing technology …………78 Direct strike protection systems… 84 Earth grounding materials … 79 3 Lightning observation products P85～ Surge counter …………………85 Lightning detection device for Lightning surge detection wind turbin ………………………88 device ……………………………86 4 Obstruction light P89～ Medium intensity and low intensity Solar power generated low intensity obstruction light ……………… 89 obstruction light system ………90 16

Product lineup 1 Lightning protection products Power supply SPD IEC ClassⅠ (Type 1) MZS-230AV IEC ClassⅠ/Ⅱ compliant Conforming standards ●IEC 61643-11 compliant ●RoHS compliant Features ●Impulse sparkover current up to 25 kA (direct strike waveform 10/350 μs) ●Voltage protection level 2.0kV or less MZS-230AV ●High follow current shutoff ability ●Deterioration display function (warning contact output terminal attached) Dimensions: W35×D125×H66 (mm) ●DIN rail mountable (35 mm) ■External view Mass: 370 (g) Applications Screw (M6) ■Circuit diagram ●Low voltage power supply circuits in switchboards and Terminal Adhesive Terminal Rail stopper distribution boards (AC 100V/200V) display nameplate display ●Power supply circuits in control equipment (AC 100V/200V) ■Characteristics Deterioration Deterioration identification terminal 125±1 display 4.5 Item Measurement conditions Performance 45 Maximum continuous operating voltage (50/60Hz) (Uc) ― 275V Impulse current (Iimp) 10/350μs 25kA Cable Cable inlet inlet Short-circuit withstand capability (Isccr) L-NPE 50kA Voltage protection level (Up) Based on IEC 2.0 kV or less DIN rail (35mm) MZS-NPE IEC ClassⅠ/Ⅱ compliant Conforming standards ●IEC 61643-11 compliant ●RoHS compliant Features ●Impulse sparkover current up to 75 kA (direct strike waveform 10/350 μs) ●Voltage protection level 1.5 kV or less MZS-NPE ●DIN rail mountable (35 mm) Applications ●Low voltage power supply circuits in switchboards and ■External view Dimensions: W35×D125×H66 (mm) Mass: 290 (g) Screw (M6) distribution boards (AC 100V/200V) Terminal Adhesive Terminal Rail stopper display nameplate display ■Circuit diagram ●Power supply circuits in control equipment (AC 100V/200V) ■Characteristics Item Measurement conditions Performance 125 4.5 Maximum continuous operating 45 voltage (50/60Hz) (Uc) ― 255V Impulse current (Iimp) 10/350μs 75ｋA Cable Cable inlet inlet Nominal discharge current (In) 8/20μs 20kA Voltage protection level (Up) Based on IEC 1.5 kV or less DIN rail (35 mm) ■Installation examples (MZS-200AV + MZS-NPE) TN system (single phase) TT system L F L F N L F PE L F F N Class Ⅰ SPD F F F MZS-230AV×1 Class Ⅰ SPD MZS-NPE×1 MZS-230AV×3 MZS-NPE×1 EB EB Short bar Short bar 18 （51） 15 （51） 66 35 15 66±1 （10.2） 35±1 （76.4）
