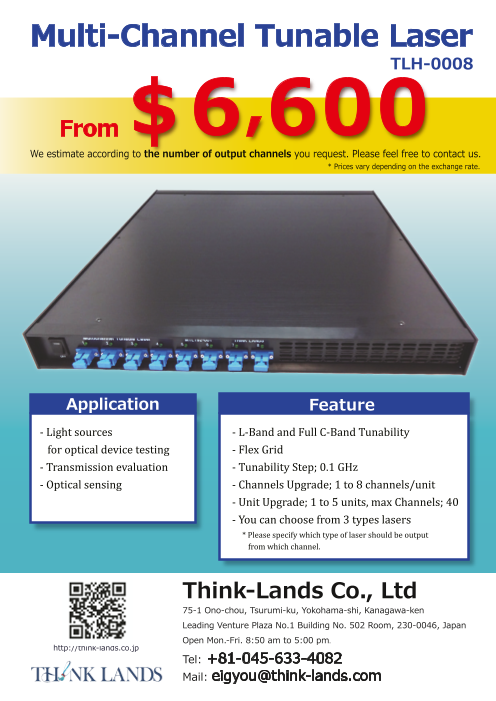

Documents related to this company
Product Catalog
Think-Lands Co., Ltd
Document Contents
Page1
Polarization controller
OPC294-001
The polarization state can be
easily adjusted manually.
It can be widely used as a tool
for various research &
development, such as optical
experiments and
optical measurements.
λ/2 wavelength plate（HWP) Specification
λ/4 wavelength plate（QWP） Item Notes
Polarizer（POL） Center wavelength 1550 nm
Insertion loss ≦ 1.0 dB
Return loss ≧ 50 dB
Optical fiber SMF or PMF Fiber length︓1m
Optical connector FC or SPC, can be specifiedSPC or APC
Input/output and connector type can be specified.
If you have any requests about the order of
the wavelength plates, please contact us.
Please specify the specifications for X and YY from the following list when you order.
OPC294-001-X-YY X = S(SMF), P(PMF)YY = SP(SC/SPC), SA(SC/APC), FP(FC/SPC), FA(FC/APC)
* Warranty
If a failure due to faulty manufacturing or an accident during transportation, please contact the store where you purchased the product
or our sales department The warranty period is within one year from the date of delivery, and the product will be repaired free of charge.
However, in the following cases, repair will be charged even if it is within one year :
malfunctions due to operational errors, modification or alteration by the customer, transportation, natural disasters, etc.
