COM-HPC Server Size D: conga-HPC/sILH データシート

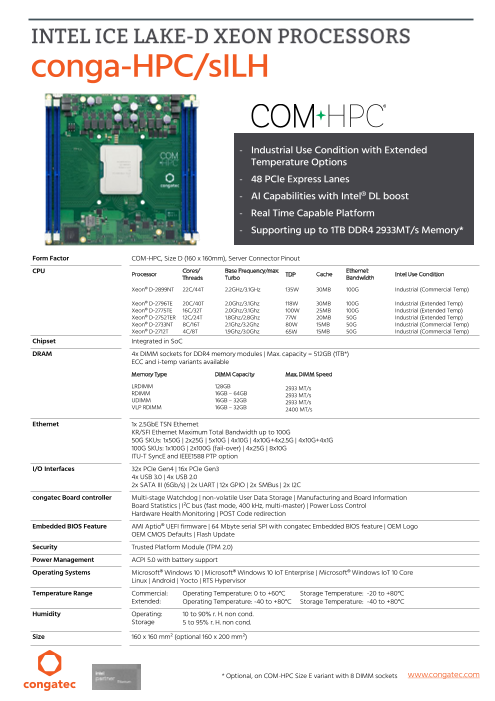

conga-HPC/sILH - Industrial Use Condition with Extended Temperature Options - 48 PCIe Express Lanes - AI Capabilities with Intel® DL boost - Real Time Capable Platform - Supporting up to 1TB DDR4 2933MT/s Memory* Form Factor COM-HPC, Size D (160 x 160mm), Server Connector Pinout CPU Processor Cores/ Base Frequency/max. Threads Turbo TDP Cache Ethernet Bandwidth Intel Use Condition Xeon® D-2899NT 22C/44T 2.2GHz/3.1GHz 135W 30MB 100G Industrial (Commercial Temp) Xeon® D-2796TE 20C/40T 2.0Ghz/3.1Ghz 118W 30MB 100G Industrial (Extended Temp) Xeon® D-2775TE 16C/32T 2.0Ghz/3.1Ghz 100W 25MB 100G Industrial (Extended Temp) Xeon® D-2752TER 12C/24T 1.8Ghz/2.8Ghz 77W 20MB 50G Industrial (Extended Temp) Xeon® D-2733NT 8C/16T 2.1Ghz/3.2Ghz 80W 15MB 50G Industrial (Commercial Temp) Xeon® D-2712T 4C/8T 1.9Ghz/3.0Ghz 65W 15MB 50G Industrial (Commercial Temp) Chipset Integrated in SoC DRAM 4x DIMM sockets for DDR4 memory modules | Max. capacity = 512GB (1TB*) ECC and i-temp variants available Memory Type DIMM Capacity Max. DIMM Speed LRDIMM 128GB 2933 MT/s RDIMM 16GB – 64GB 2933 MT/s UDIMM 16GB – 32GB 2933 MT/s VLP RDIMM 16GB – 32GB 2400 MT/s Ethernet 1x 2.5GbE TSN Ethernet KR/SFI Ethernet Maximum Total Bandwidth up to 100G 50G SKUs: 1x50G | 2x25G | 5x10G | 4x10G | 4x10G+4x2.5G | 4x10G+4x1G 100G SKUs: 1x100G | 2x100G (fail-over) | 4x25G | 8x10G ITU-T SyncE and IEEE1588 PTP option I/O Interfaces 32x PCIe Gen4 | 16x PCIe Gen3 4x USB 3.0 | 4x USB 2.0 2x SATA III (6Gb/s) | 2x UART | 12x GPIO | 2x SMBus | 2x I2C congatec Board controller Multi-stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control Hardware Health Monitoring | POST Code redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 64 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo OEM CMOS Defaults | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 5.0 with battery support Operating Systems Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Microsoft® Windows IoT 10 Core Linux | Android | Yocto | RTS Hypervisor Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +80°C Extended: Operating Temperature: -40 to +80°C Storage Temperature: -40 to +80°C Humidity Operating: 10 to 90% r. H. non cond. Storage 5 to 95% r. H. non cond. Size 160 x 160 mm² (optional 160 x 200 mm²) * Optional, on COM-HPC Size E variant with 8 DIMM sockets www.congatec.com

conga-HPC/sILH DIIMM 3 DIIMM 3 DIM0/M1/ 12/23 DIM4/M5/ 36/47 DIMM 0 DIMM 0 DDR CH-A/B DDR CH-C/D congatec Intel® Xeon® D-2700 Processors Board “Ice Lake-D HCC” Controller eMMC 5.1 option SyncE DPLL option COM-HPC Server Type Connectors * Maximum total bandwidth 100G depending on SKU conga-HPC/sILH PCIe 0-7 PCIe 8-15 Gen 4 PCIe 16-31 Gen 4 PCIe 32-47 PCIe BMC SATA 0-1 SMLINK 2.5G Ethernet 100G* Quad KR/SFI 100G* Quad KR/SFI USB SS 0-3 USB2 0-3 SPI TPM 2.0 SPI ROM PPS IN/OUT Clock Ref CLK Generator eSPI SM Bus MUX UART 0-1 MUX IPMB GP SPI I2C Bus GPIO FAN Control

conga-HPC/sILH | Article PN Description conga-HPC/sILH-D2796TE 050900 COM-HPC Size D module based on Intel® Xeon® D-2796TE 20-core processor with 2.0 GHz, 30MB cache and quad channel DDR4 2933 MT/s memory interface (formerly Ice Lake-D HCC). Industrial temperature range. conga-HPC/sILH-D2775TE 050901 COM-HPC Size D module based on Intel® Xeon® D-2775TE 16-core processor with 2.0 GHz, 25MB cache and quad channel DDR4 2933 MT/s memory interface (formerly Ice Lake-D HCC). Industrial temperature range. conga-HPC/sILH-D2752TER 050902 COM-HPC Size D module based on Intel® Xeon® D-2752TER 12-core processor with 1.8 GHz, 20MB cache and quad channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D HCC). Industrial temperature range. conga-HPC/sILH-D2733NT 050910 COM-HPC Size D module based on Intel® Xeon® D-2733NT 8-core processor with 2.1 GHz, 15MB cache and quad channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D HCC). Commercial temperature range. conga-HPC/sILH-D2712T 050911 COM-HPC Size D module based on Intel® Xeon® D-2712T 4-core processor with 1.9 GHz, 15MB cache and quad channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D HCC). Commercial temperature range. conga-HPC/sILH-D2796TE DPLL 050995 COM-HPC Size D module based on Intel® Xeon® D-2796TE 20-core processor with 2.0 GHz, 30MB cache and quad channel DDR4 2933 MT/s memory interface (formerly Ice Lake-D HCC). Industrial temperature range. With DPLL option for ITU-T Synchronous Ethernet (SyncE) and IEEE1588 PTP support. conga-HPC/sILH-D2775TE DPLL 050996 COM-HPC Size D module based on Intel® Xeon® D-2775TE 16-core processor with 2.0 GHz, 25MB cache and quad channel DDR4 2933 MT/s memory interface (formerly Ice Lake-D HCC). Industrial temperature range. With DPLL option for ITU-T Synchronous Ethernet (SyncE) and IEEE1588 PTP support. conga-HPC/sILH-D2899NT 050912 COM-HPC Size D module based on Intel® Xeon® D-2899NT 22-core processor with 2.2 GHz, 30MB cache and quad channel DDR4 3200 MT/s memory interface (formerly Ice Lake-D HCC Refresh). Commercial temperature range. conga-HPC/sILH-CSA-HP-B 050950 Standard active cooling solution for COM-HPC Server modules conga-HPC/sILH with integrated heat pipes, 32.9mm overall cooling height and integrated 12V fan. Through hole mounting with bore hole standoffs Ø2.7mm. conga-HPC/sILH-CSA-HP-T 050951 Standard active cooling solution for COM-HPC Server modules conga-HPC/sILH with integrated heat pipes, 32.9mm overall cooling height and integrated 12V fan. Threaded mounting with threaded standoffs M2.5. conga-HPC/sILH-HSP-HP-B 050952 Standard heatspreader for COM-HPC Server modules conga-HPC/sILH with integrated heat pipes and 11mm overall cooling height. Through hole mounting with bore hole standoffs Ø2.7mm. conga-HPC/sILH-HSP-HP-T 050953 Standard heatspreader for COM-HPC Server modules conga-HPC/sILH with integrated heat pipes and 11mm overall cooling height. Threaded mounting with threaded standoffs M2.5. conga-HPC/sILH-HPA-B 050954 Heat pipe Adapter for COM-HPC Server modules conga-HPC/sILH. Suitable for standard 8 mm heat pipes to optimize heat distribution. Through hole mounting with bore hole standoffs Ø2.7mm. conga-HPC/sILH-HPA-T 050955 Heat pipe Adapter for COM-HPC Server modules conga-HPC/sILH. Suitable for standard 8 mm heat pipes to optimize heat distribution. Threaded mounting with threaded standoffs M2.5. conga-HPC/sILH-Retention Frame 050956 Retention frame for conga-HPC/sILH conga-HPC/EVAL-Server 065500 conga-HPC/EVAL-Server conga-HPC/LEK-C827-IM 4SFP28 065505 COM_HPC Mezzanine card with Intel C827-IM and 4xSFP28, 4x25G configuration conga-HPC/LEK-C827-IM 8SFP+ 065506 COM_HPC Mezzanine card with 2x Intel C827-IM and 8xSFP+, 8x10G configuration conga-HPC/LEK-C827-IM 2QSFP28 065508 COM_HPC Mezzanine card with Intel C827-IM and 2xQSFP28, 2x100G, 8x10G (Breakout mode) configuration www.congatec.com

conga-HPC/sILH | Article PN Description DDR4-LRDIMM-3200 ECC (128GB) 069420 DDR4 ECC LRDIMM memory module with 3200 MT/s and 128GB RAM DDR4-LRDIMM-3200 ECC (128GB) 069430 Industrial DDR4 ECC LRDIMM memory module with 3200 MT/s and 128GB RAM DDR4-RDIMM-3200 ECC (16GB) 069200 DDR4 ECC RDIMM memory module with 3200 MT/s and 16GB RAM DDR4-RDIMM-3200 ECC (16GB) / i-temp 069210 Industrial DDR4 ECC RDIMM memory module with 3200 MT/s and 16GB RAM DDR4-RDIMM-3200 ECC (32GB) 069220 DDR4 ECC RDIMM memory module with 3200 MT/s and 32GB RAM DDR4-RDIMM-3200 ECC (32GB) / i-temp 069230 Industrial DDR4 ECC RDIMM memory module with 3200 MT/s and 32GB RAM DDR4-RDIMM-3200 ECC (64GB) 069240 DDR4 ECC RDIMM memory module with 3200 MT/s and 64GB RAM DDR4-UDIMM-3200 (16GB) 069000 DDR4 UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (16GB)(ECC) 069003 DDR4 ECC UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (16GB) / i-temp 069002 Industrial DDR4 UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (16GB)(ECC) / i-temp 069004 Industrial DDR4 ECC UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (32GB) 069001 DDR4 UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 (32GB)(ECC) 069006 DDR4 ECC UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 (32GB) / i-temp 069005 Industrial DDR4 UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 (32GB)(ECC) / i-temp 069007 Industrial DDR4 ECC UDIMM memory module with 3200 MT/s and 32GB RAM VLP DDR4-RDIMM-3200 ECC (16GB) 069600 VLP DDR4 ECC RDIMM memory module with 3200 MT/s and 16GB RAM VLP DDR4-RDIMM-3200 ECC (16GB) / i-temp 069610 Industrial ECC DDR4 VLP RDIMM memory module with 3200 MT/s and 16GB RAM VLP DDR4-RDIMM-3200 ECC (32GB) 069620 VLP DDR4 ECC RDIMM memory module with 3200 MT/s and 32GB RAM © 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for mass production. Revision 1.7 – March 2024 www.congatec.com
