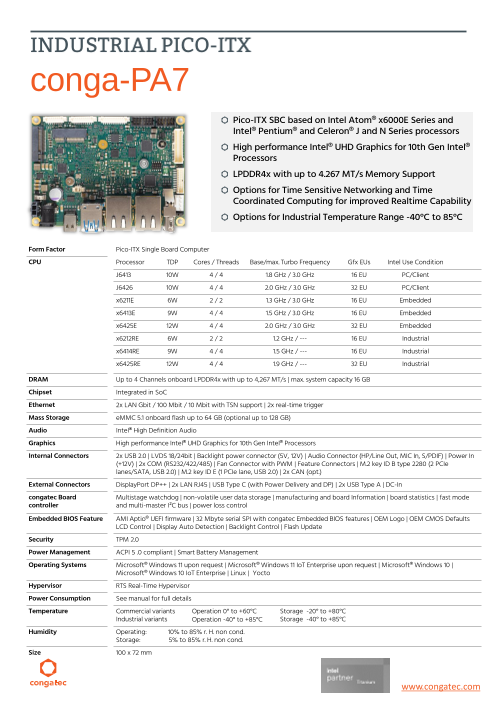

conga-PA7 - Pico-ITX SBC based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors - High performance Intel® UHD Graphics for 10th Gen Intel® Processors - LPDDR4x with up to 4.267 MT/s Memory Support - Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability - Options for Industrial Temperature Range -40°C to 85°C Form Factor Pico-ITX Single Board Computer CPU Processor TDP Cores / Threads Base/max. Turbo Frequency Gfx EUs Intel Use Condition J6413 10W 4 / 4 1.8 GHz / 3.0 GHz 16 EU PC/Client J6426 10W 4 / 4 2.0 GHz / 3.0 GHz 32 EU PC/Client x6211E 6W 2 / 2 1.3 GHz / 3.0 GHz 16 EU Embedded x6413E 9W 4 / 4 1.5 GHz / 3.0 GHz 16 EU Embedded x6425E 12W 4 / 4 2.0 GHz / 3.0 GHz 32 EU Embedded x6212RE 6W 2 / 2 1.2 GHz / --- 16 EU Industrial x6414RE 9W 4 / 4 1.5 GHz / --- 16 EU Industrial x6425RE 12W 4 / 4 1.9 GHz / --- 32 EU Industrial DRAM Up to 4 Channels onboard LPDDR4x with up to 4,267 MT/s | max. system capacity 16 GB Chipset Integrated in SoC Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit with TSN support | 2x real-time trigger Mass Storage eMMC 5.1 onboard flash up to 64 GB (optional up to 128 GB) Audio Intel® High Definition Audio Graphics High performance Intel® UHD Graphics for 10th Gen Intel® Processors Internal Connectors 2x USB 2.0 | LVDS 18/24bit | Backlight power connector (5V, 12V) | Audio Connector (HP/Line Out, MIC In, S/PDIF) | Power In (+12V) | 2x COM (RS232/422/485) | Fan Connector with PWM | Feature Connectors | M.2 key ID B type 2280 (2 PCIe lanes/SATA, USB 2.0) | M.2 key ID E (1 PCIe lane, USB 2.0) | 2x CAN (opt.) External Connectors DisplayPort DP++ | 2x LAN RJ45 | USB Type C (with Power Delivery and DP) | 2x USB Type A | DC-In congatec Board Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode controller and multi-master I²C bus | power loss control Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS features | OEM Logo | OEM CMOS Defaults LCD Control | Display Auto Detection | Backlight Control | Flash Update Security TPM 2.0 Power Management ACPI 5 .0 compliant | Smart Battery Management Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Power Consumption See manual for full details Temperature Commercial variants Operation 0° to +60°C Storage -20° to +80°C Industrial variants Operation -40° to +85°C Storage -40° to +85°C Humidity Operating: 10% to 90% r. H. non cond. Storage: 5% to 95% r. H. non cond. Size 100 x 72 mm www.congatec.com

conga-PA7 eMMC 5.1 USB 3.1 DP/USB DP1 MUX USB-C USB PD DP0 DP++ Backlight eDP eDP to LVDS LVDS 2x USB 3.1 2x USB 3.1 Type A RGMII 0 Gigabit Phy GbE GbE Intel Atom® x6000E RGMII 1 Gigabit Phy and DC-Jack HPout/MicIn/ Intel® Pentium® and HDA AUDIO CODEC S/PDIF Celeron® N and J 2x USB 2.0 2x USB 2.0 Onboard Series processors LPDDR4 LPDDR4x (“Elkhart Lake”) USB 2.0 M.2 2280 memoryy SATA/PCIe x2 Key-B PCIe M.2 2230 USB 2.0 Key-E CAN0 CAN0 Dual Can CAN1 Transceiver CAN1 eSPI FSPI TPM congatec UART 0 Multiprotocol COM0 Board UART 1 Transceiver Legend COM1 Controller Optional 5th Generation GPIO 0-7 External I/O Front I2C, FAN RTC Battery Internal I/O DC-In 12V Panel Watchdog 4-Pin header Note: * Assembly options on request only. www.congatec.com

conga-PA7 | Order Information Article PN Description Pico-ITX board with Intel Atom® x6425E quad core processor with 2.0GHz core conga-PA7/x6425E-8G eMMC64 048900 frequency up to 3.0GHz, 8GB 3733MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. Pico-ITX board with Intel Atom® x6413E quad core processor with 1.5GHz core conga-PA7/x6413E-4G eMMC32 048901 frequency up to 3.0GHz, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Pico-ITX board with Intel Atom® x6211E dual core processor with 1.3GHz core conga-PA7/x6211E-4G eMMC32 048902 frequency up to 3.0GHz, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. conga-PA7/i-x6425RE-8G Pico-ITX board with Intel Atom® x6425RE quad core processor with 1.9GHz core eMMC64 048910 frequency, 8GB 4267MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. conga-PA7/i-x6414RE-4G Pico-ITX board with Intel Atom® x6414RE quad core processor with 1.5GHz core eMMC32 048911 frequency, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. conga-PA7/i-x6212RE-4G Pico-ITX board with Intel Atom® x6212RE dual core processor with 1.2GHz core eMMC32 048912 frequency, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C Pico-ITX board with Intel® Pentium® J6426 quad core processor with 2.0GHz core conga-PA7/J6426-8G eMMC64 048920 frequency up to 3.0GHz, 8GB 3733MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. Pico-ITX board with Intel® Celeron® J6413 quad core processor with 1.8GHz core conga-PA7/J6413-4G eMMC32 048921 frequency up to 3.0GHz, 4GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. conga-PA7/HSP-T 048950 Heatspreader solution for conga-PA7 based on open silicon Intel® Pentium® and Celeron® J and N processors . All standoffs are M2.5 threaded. conga-PA7/i-HSP-T 048951 Heatspreader solution for conga-PA7 based on lidded silicon Intel Atom® x6000E processor series. All standoffs are M2.5 threaded. conga-PA7/CSP-T 048952 Passive cooling solution for conga-PA7 based on open silicon Intel® Pentium® and Celeron® J and N processors. All standoffs are M2.5 threaded. conga-PA7/i-CSP-T 048953 Passive cooling solution for conga-PA7 based on lidded silicon Intel Atom® X6000E processor series. All standoffs are M2.5 threaded. conga-PA7/HSP-B 048954 Heatspreader solution for conga-PA7 based on open silicon Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm borehole. conga-PA7/i-HSP-B 048955 Heatspreader solution for conga-PA7 based on lidded silicon Intel Atom® x6000E processors series. All standoffs are with 2.7mm borehole. © 2023 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Revision 1.3. December 18th, 2023 www.congatec.com
