COM Express Mini Type 10: conga-MA7 データシート

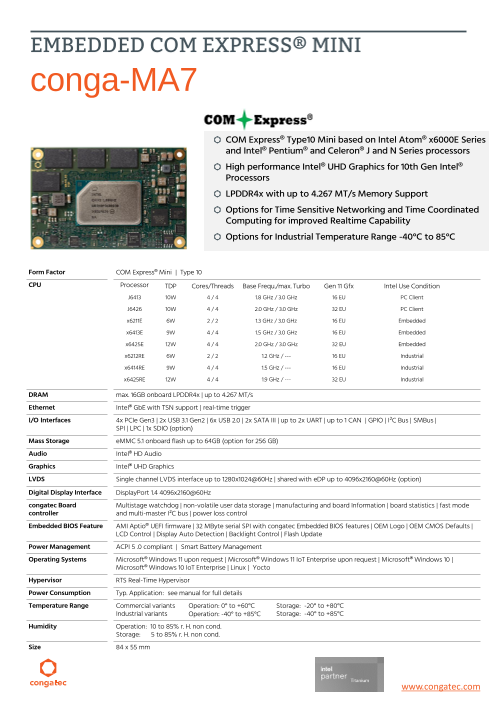

conga-MA7 - COM Express® Type 10 Mini based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series - High performance Intel® UHD Graphics - Options for Industrial Temperature Range -40°C to 85°C - Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability - Up to 4.267 MT/s Memory Support Form Factor COM Express® Mini | Type 10 CPU Processor TDP Cores/Threads Base Frequ./max. Turbo Gen 11 Gfx Intel Use Condition J6413 10W 4 / 4 1.8 GHz / 3.0 GHz 16 EU PC Client J6426 10W 4 / 4 2.0 GHz / 3.0 GHz 32 EU PC Client x6211E 6W 2 / 2 1.3 GHz / 3.0 GHz 16 EU Embedded x6413E 9W 4 / 4 1.5 GHz / 3.0 GHz 16 EU Embedded x6425E 12W 4 / 4 2.0 GHz / 3.0 GHz 32 EU Embedded x6212RE 6W 2 / 2 1.2 GHz / --- 16 EU Industrial x6414RE 9W 4 / 4 1.5 GHz / --- 16 EU Industrial x6425RE 12W 4 / 4 1.9 GHz / --- 32 EU Industrial DRAM max. 16GB onboard LPDDR4x | up to 4.267 MT/s Ethernet Intel® GbE with TSN support | real-time trigger I/O Interfaces 4x PCIe Gen3 | 2x USB 3.1 Gen2 | 6x USB 2.0 | 2x SATA III | up to 2x UART | up to 1 CAN | GPIO | I²C Bus | SMBus | SPI | LPC | 1x SDIO (option) Mass Storage eMMC 5.1 onboard flash up to 64GB (option for 256 GB) Audio Intel® HD Audio Graphics Intel® UHD Graphics LVDS Single channel LVDS interface up to 1280x1024@60Hz | shared with eDP up to 4096x2160@60Hz (option) Digital Display Interface DisplayPort 1.4 4096x2160@60Hz congatec Board Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode controller and multi-master I²C bus | power loss control Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 MByte serial SPI with congatec Embedded BIOS features | OEM Logo | OEM CMOS Defaults | LCD Control | Display Auto Detection | Backlight Control | Flash Update Power Management ACPI 5 .0 compliant | Smart Battery Management Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Power Consumption Typ. Application: see manual for full details Temperature Range Commercial variants Operation: 0° to +60°C Storage: -20° to +80°C Industrial variants Operation: -40° to +85°C Storage: -40° to +85°C Humidity Operation: 10 to 90% r. H. non cond. Storage: 5 to 95% r. H. non cond. Size 84 x 55 mm www.congatec.com

conga-MA7 COM Express 3.1 220 pin A-B * Assembly Option Connector Type 10 eDP Onboard LPDODnRb4ox eDP to LVDS ard DDI0 LVDS_A / eDP0 meLmPoDrDy Bridge R4x LPDDR4x up to 4,267 MT/s memory DDI1 DP++ (DP0) HSIO2 PCIIe 0 HSIO3 PCIe 1 HSIO4 PCIe 2 HSIO5 PCIe 3 HSIO10 SATA 0 HSIO11 SATA 1 eMMC 5.1 eMMC RGMII GBE PHY Ethernet USB 3.1 USB 3.1 USB 3.1 USB 3.1 USB 2.0 6x USB 2.0 Intel Atom® x6000E and HDA HDA Assembly Option Intel® Pentium® and SPI1 Celeron® N and J FSPI0 SPI Series processors TPM 2.0 BIOS (“Elkhart Lake”) UART0 SER0 CAN0 T MUX SER1 * eSPI Assembly Option UAR 1 UART3 eSPI to eSPI LPC LPC Bridge SMB SMB I2C congatec PWR control Board FAN control Controller GPIO MEC1705 Note:: * Assembly options on request only www.congatec.com

conga-MA7 | Order Information Article PN Description COM Express Mini Type10 module with Intel® Atom® x6425E quad core processor conga-MA7/x6425E-16G eMMC64 049400 with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash COM Express Mini Type10 module with Intel® Atom® x6413E quad core processor conga-MA7/x6413E-8G eMMC32 049401 with 1.5GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash COM Express Mini Type10 module with Intel® Atom® x6211E dual core processor conga-MA7/x6211E-4G eMMC32 049402 with 1.3GHz core frequency up to 3.0GHz, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash COM Express Mini Type10 module with Intel® Atom® x6425RE quad core processor conga-MA7/i-x6425RE-8G eMMC32 049410 with 1.9GHz core frequency, 1.5MB cache, 8GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C COM Express Mini Type10 module with Intel® Atom® x6414RE quad core processor conga-MA7/i-x6414RE-4G eMMC32 049411 with 1.5GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C COM Express Mini Type10 module with Intel® Atom® x6212RE dual core processor conga-MA7/i-x6212RE-4G eMMC32 049412 with 1.2GHz core frequency, 1.5MB cache, 4GB 3200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C COM Express Mini Type10 module with Intel® Pentium® J6426 quad core processor conga-MA7/J6426-16G eMMC64 049420 with 2.0GHz core frequency up to 3.0GHz, 1.5MB cache, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash COM Express Mini Type10 module with Intel® Celeron® J6413 quad core processor conga-MA7/J6413-8G eMMC32 049421 with 1.8GHz core frequency up to 3.0GHz, 1.5MB cache, 8GB 3733MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash Passive cooling solution for COM Express Mini Type10 module conga-MA7 with conga-MA7/i-CSP-B 049450 lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. Passive cooling solution for COM Express Mini Type10 module conga-MA7 with conga-MA7/i-CSP-T 049451 lidded Intel Atom x6000E processors. All standoffs are M2.5mm threaded. Passive cooling solution for COM Express Mini Type10 module conga-MA7 with conga-MA7/CSP-B 049452 open-die Intel Pentium/Celeron N and J processors. All standoffs are with 2.7mm bore hole. Passive cooling solution for COM Express Mini Type10 module conga-MA7 with conga-MA7/CSP-T 049453 open-die Intel Pentium/Celeron N and J processors. All standoffs are M2.5mm threaded. conga-MA7/i-HSP-B 049454 Standard heatspreader for COM Express Mini Type10 module conga-MA7 with lidded Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole. Standard heatspreader for COM Express Mini Type10 module conga-MA7 with conga-MA7/i-HSP-T 049455 lidded Intel Atom x6000E processors. All standoffs are M2.5mm threaded. Standard heatspreader for COM Express Mini Type10 module conga-MA7 with conga-MA7/HSP-B 049456 open-die Intel Pentium/Celeron N and J processors. All standoffs are with 2.7mm bore hole. Standard heatspreader for COM Express Mini Type10 module conga-MA7 with conga-MA7/HSP-T 049457 open-die Intel Pentium/Celeron N and J processors. All standoffs are M2.5mm threaded. © 2023 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Revision 1.4 – December 18th 2023 www.congatec.com
