Qseven: conga-QA7 データシート

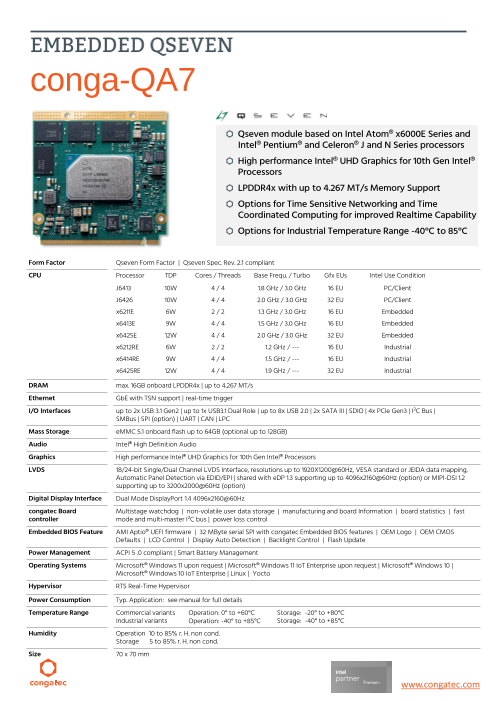

conga-QA7 - Qseven module based on Intel Atom® x6000E Series and Intel® Pentium® and Celeron® J and N Series processors - High performance Intel® UHD Graphics for 10th Gen Intel® Processors - LPDDR4x with up to 4.267 MT/s Memory Support - Options for Time Sensitive Networking and Time Coordinated Computing for improved Realtime Capability - Options for Industrial Temperature Range -40°C to 85°C Form Factor Qseven Form Factor | Qseven Spec. Rev. 2.1 compliant CPU Processor TDP Cores / Threads Base Frequ. / Turbo Gfx EUs Intel Use Condition J6413 10W 4 / 4 1.8 GHz / 3.0 GHz 16 EU PC/Client J6426 10W 4 / 4 2.0 GHz / 3.0 GHz 32 EU PC/Client x6211E 6W 2 / 2 1.3 GHz / 3.0 GHz 16 EU Embedded x6413E 9W 4 / 4 1.5 GHz / 3.0 GHz 16 EU Embedded x6425E 12W 4 / 4 2.0 GHz / 3.0 GHz 32 EU Embedded x6212RE 6W 2 / 2 1.2 GHz / --- 16 EU Industrial x6414RE 9W 4 / 4 1.5 GHz / --- 16 EU Industrial x6425RE 12W 4 / 4 1.9 GHz / --- 32 EU Industrial DRAM max. 16GB onboard LPDDR4x | up to 4.267 MT/s Ethernet GbE with TSN support | real-time trigger I/O Interfaces up to 2x USB 3.1 Gen2 | up to 1x USB3.1 Dual Role | up to 8x USB 2.0 | 2x SATA III | SDIO | 4x PCIe Gen3 | I²C Bus | SMBus | SPI (option) | UART | CAN | LPC Mass Storage eMMC 5.1 onboard flash up to 64GB (optional up to 128GB) Audio Intel® High Definition Audio Graphics High performance Intel® UHD Graphics for 10th Gen Intel® Processors LVDS 18/24-bit Single/Dual Channel LVDS Interface, resolutions up to 1920X1200@60Hz, VESA standard or JEIDA data mapping, Automatic Panel Detection via EDID/EPI | shared with eDP 1.3 supporting up to 4096x2160@60Hz (option) or MIPI-DSI 1.2 supporting up to 3200x2000@60Hz (option) Digital Display Interface Dual Mode DisplayPort 1.4 4096x2160@60Hz congatec Board Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast controller mode and multi-master I²C bus | power loss control Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 MByte serial SPI with congatec Embedded BIOS features | OEM Logo | OEM CMOS Defaults | LCD Control | Display Auto Detection | Backlight Control | Flash Update Power Management ACPI 5 .0 compliant | Smart Battery Management Operating Systems Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Android | Yocto | RTS Hypervisor Power Consumption Typ. Application: see manual for full details Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +80°C Industrial: Operating Temperature: -40 to +85°C Storage Temperature: -40 to +85°C Humidity Operating Humidity: 10 to 90% r. H. non cond. Storage Humidity: 5 to 95% r. H. non cond. Size 70 x 70 mm www.congatec.com

conga-QA7 Qseven MXM LVDS/eDP/DSI Assembly Option* Connector eDP 230 Edge Finger Onboard DSI LPDODnRb4oxard DDI0 LVDS_A / eDP0 meLmPoDrDyR4x LPDDR4x up to 4,267 MT/s eDP to LVDS Bridge memory LVDS_B / DP DDI1 DP DDI2 DDI PCIe 0 PCIe Port 0 PCIe 1 PCIe Port 1 PCIe 2 PCIe Port 2 PCIe 3 PCIe Port 3 2x SATA 6Gb/s SATA Port 1 - 0 eMMC 5.1 eMMC GBE PHY RGMII Ethernet DP83867 2x USB 3.1 USBSS Port 1 ORO 4x USB 2.0 USB Port 7-4 4x USB 2.0 Intel Atom® x6000E USB Port 3-0 and CAN CAN Bus Intel® Pentium® and Celeron® N and J SD/SDIO SD/SDIO Series processors HDA HDA (“Elkhart Lake”) UART I2C PWR control Fan control SM Bus Assembly Option* SPI eSPI SPI Bus FSPI eSPI to LPC LPC Note: * Assembly options on request only. BIOS TPM 2.0 congatec Board Controller MEC1705 Multistage Watchdog Board Information HW Monitoring Power Control / GPIO SER0 / SMB / I2C www.congatec.com

conga-QA7 | Order Information Article PN Description conga-QA7/x6425E-16G Qseven module with Intel Atom® x6425E quad core processor with 2.0GHz core 015800 eMMC64 frequency up to 3.0GHz, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. conga-QA7/x6413E-8G Qseven module with Intel Atom® x6413E quad core processor with 1.5GHz core 015801 eMMC32 frequency up to 3.0GHz, 8GB 3.200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. conga-QA7/x6211E-4G Qseven module with Intel Atom® x6211E dual core processor with 1.3GHz core 015802 eMMC32 frequency up to 3.0GHz, 4GB 3.200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. conga-QA7/i-x6425RE-8G Qseven module with Intel Atom® x6425RE quad core processor with 1.9GHz core 015810 eMMC32 frequency, 8GB 4267MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. conga-QA7/i-x6414RE-4G Qseven module with Intel Atom® x6414RE quad core processor with 1.5GHz core 015811 eMMC32 frequency, 4GB 3.200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. conga-QA7/i-x6212RE-4G Qseven module with Intel Atom® x6212RE dual core processor with 1.2GHz core 015812 eMMC32 frequency, 4GB 3.200MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. Industrial grade temperature range from -40°C to 85°C. conga-QA7/J6426-16G Qseven module with Intel® Pentium® J6426 quad core processor with 2.0GHz core 015820 eMMC64 frequency up to 3.0GHz, 16GB 3200MT/s LPDDR4x onboard memory and 64GB eMMC 5.1 onboard flash. conga-QA7/J6413-8G Qseven module with Intel® Celeron® J6413 quad core processor with 1.8GHz core 015821 eMMC32 frequency up to 3.0GHz, 8GB 3.733MT/s LPDDR4x onboard memory and 32GB eMMC 5.1 onboard flash. conga-QA7/i-CSP-B 015850 Passive cooling solution for Qseven module conga-QA7 with lidded Intel Atom® x6000E processor series. All standoffs are with 2.7mm bore hole. conga-QA7/i-HSP-B 015851 Standard heatspreader for Qseven module conga-QA7 with lidded Intel Atom® x6000E processor series. All standoffs are with 2.7mm bore hole. conga-QA7/HSP-B 015852 Standard heatspreader for Qseven module conga-QA7 with open-die Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm bore hole. conga-QA7/CSP-B 015853 Passive cooling solution for Qseven module conga-QA7 with open-die Intel® Pentium® and Celeron® J and N processors. All standoffs are with 2.7mm bore hole. conga-QA7/i-CSP-T 015854 Passive cooling solution for Qseven module conga-QA7 with lidded Intel Atom® x6000E processor series. All standoffs are M2.5x0.45p threaded. conga-QA7/i-HSP-T 015855 Standard heatspreader for Qseven module conga-QA7 with lidded Intel Atom® x6000E processor series. All standoffs are M2.5x0.45p threaded. conga-QA7/HSP-T 015856 Standard heatspreader for Qseven module conga-QA7 with open-die Intel Pentium/Celeron J and N processors. All standoffs are M2.5x0.45p threaded. conga-QA7/CSP-T 015857 Passive cooling solution for Qseven module conga-QA7 with open-die Intel Pentium/Celeron J and N processors. All standoffs are M2.5x0.45p threaded. © 2022 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Revision 1.1 – December 1st, 2022 www.congatec.com
