台湾のLEDメーカー Oasistekが製造するLEDストリップライトは、柔軟なテープ状の基盤にLEDチップが埋め込まれた照明製品です。
台湾のLEDメーカー Oasistek が製造するLEDストリップライトは、柔軟なテープ状の基盤にLEDチップが埋め込まれた照明製品です。主にインテリアの装飾やアクセント照明に使用され、曲面や狭い場所にも簡単に取り付け可能です。色温度や明るさのバリエーションがあり、RGBモデルではカラー変更ができます。エネルギー効率が良く、長寿命で省エネ、取り付けも簡単です。家庭用や商業用で広く利用され、デザイン性と機能性を兼ね備えた製品です。
◇カタログ 目次
一般的な LED ストリップ 001
FCOB LEDストリップ 003
SMD2835 LEDストリップ - 035
SMD2216 LEDストリップ 069
SMD3528 LEDストリップ - 083
SMD5050 LEDストリップ 087
SMD3838 LEDストリップ 098
SMD3014 LEDストリップ - 104
SMD4713 LEDストリップ 109
SMD5730 LEDストリップ 113
SMD6060 LEDストリップ 115
防水 LED ストリップ 117
ロングラン LED ストリップ 127
DC24Vシリーズ128
DC48Vシリーズ133
LEDフレッシュライト142
シリコンチューブ 149
このカタログについて
ドキュメント名 | Oasistek オアシステック (台湾) LEDストリップライト カタログ |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 89.9Mb |
登録カテゴリ | |
取り扱い企業 | 二松電気株式会社 (この企業の取り扱いカタログ一覧) |

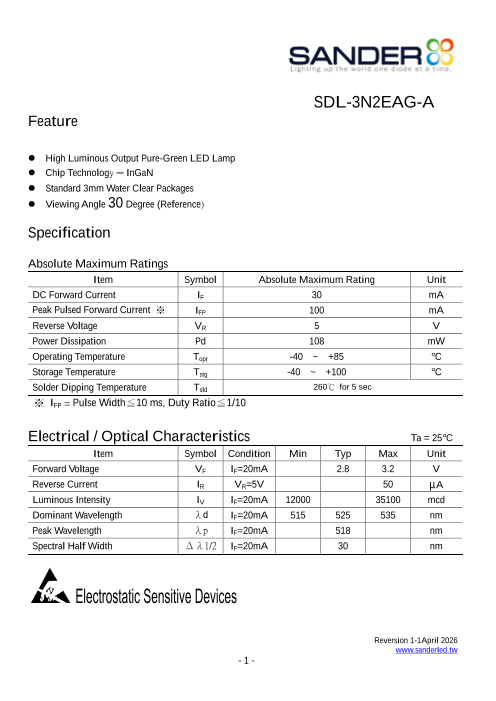

この企業の関連カタログ

このカタログの内容
Page1
LED
Strip
Light
M / A / R / C / H 2 / 0 / 2 / 4
V1.0
Taiwan Oasis Technology Co., Ltd. (Oasistek)
Address:27F, No.97, Sec.1, Xintai 5th Rd.,
Xizhi Dist., New Taipei City 22175, Taiwan
Taiwan Oasis Technology Co., Ltd. (Oasistek)
Page2
Taiwan Oasis Technology Co., Ltd. (Oasistek) was founded in 1974 by its
founder and chairman, Ming-Shun Lee, and has over 50 years of experience
in the production and development of Light Emitting Diode (LED) and
semiconductor components. With vertical integration of upstream,
midstream and downstream expertise, Oasistek provides OEM/ODM
development and design, and has a complete scientic quality control
system to provide customers with comprehensive solutions.
Below are our main development focuses:
Products:
LED Display
Semiconductor Components
LED Lighting
Services:
Professional Electronic Manufacturing Service (EMS)
LED lighting module application service (Module-System)
Semiconductor design and manufacturing service
In recent years, Oasistek has also developed into the lighting market,
providing lighting products that are comfortable, non-glare,
stable and non-ickering. For 50 years,
Oasistek has been providing a wide range of manufacturing services
that are well recognized by the market. We are the rst manufacturer
in Taiwan to provide LED-related products to major Japanese
manufacturers. Oasistek's mission is to satisfy your needs in all aspects.
Taipei Headquarter Taoyuan Manufacturing Center Dongguan Manufacturing Center
Page6
FPH
Page11
FCOB-480-2.8mm-3m
Economic Series
FCOB-512-10mm-5m
FCOB-512-8mm-5m
FCOB-480-10mm-5m
FCOB-480-8mm-5m
RGB Series
FCOB-560RGBW-12mm-5m
FCOB-840RGB-10mm-5m
FCOB-840RGB-12mm-5m
Short Cutting Series
FCOB-512-10mm-5m
FCOB-480-10mm-5m
FCOB-600-10mm-5m
High Voltage Series
FCOB-320-8mm-5m
FCOB-280-8mm-5m
Waterproof NEON Series
FCOB-512-10mm-5m
FCOB-512-8mm-5m
FCOB-480-10mm-5m
FCOB-480-8mm-5m
Page13
COB-360-8mm-5m
deg
FCOB180- FCOB180-
WF0-5M-12-K008 WF0-5M-5-K008 Luminaire 65lm/W
efficacy(4000K) @Ra90
Step length(mm/xLED) 25mm/9LEDs 50mm/18LEDs
Number LED/m 360 360
Voltage(V) 12V 5V
Ra 90 90
Beam Angle(°) 140 140 275lm
Power (w/m) 5 5 300lm
FPC width (mm) 8 8 325lm
Max.length per circuit (m) 5 5 350lm
IP rate 20/65/66/67/68 20/65/66/67/68
Installation 3M Tape / Mounting Clips / Aluminum Profiles 3M Tape / Mounting Clips / Aluminum Profiles
Page16
FCOB240-
WF0-5M-24-K002.8
2.8
Page18
Economic series COB-480-8mm-5m Economic Series COB-480-10mm-5m
°C
IP20 IP65 IP66 IP67 IP68 IP20 IP65 IP66 IP67 IP68
deg deg
FCOB240- FCOB240- FCOB240- FCOB240-
WF0-5M-12-K008 WF0-5M-24-K008 Luminaire 106lm/W WF0-5M-12-K010-ECO WF0-5M-24-K010-ECO Luminaire 93lm/W
ecacy(4000K) @Ra90 effica(c4y000K) @Ra90
Step length(mm/xLED) 25mm/12LEDs 50mm/24LEDs Step length(mm/xLED) 25mm/12LEDs 50mm/24LEDs
Number LED/m 480 480 Number LED/m 480 480
Voltage(V) 12V 24V Voltage(V) 12V 24V
Ra 90 90 Ra 90 90
Beam Angle(°) 140 140 800lm Beam Angle(°) 140 140 1020lm
Power (w/m) 9 9 900lm Power (w/m) 12 12 1100lm
FPC width (mm) 8 8 950lm FPC width (mm) 10 10 1120lm
Max.length per circuit (m) 5 5 980lm Max.length per circuit (m) 5 5 1188lm
IP rate 20/65/66/67/68 20/65/66/67/68 IP rate 20/65/66/67/68 20/65/66/67/68
Installation 3M Tape / Mounting Clips / Aluminum Profiles Installation 3M Tape / Mounting Clips / Aluminum Profiles
Page20
Economic series COB-512-8mm-5m Economic Series COB-512-10mm-5m
IP20 IP65 IP66 IP67 IP68 IP20 IP65 IP66 IP67 IP68
deg
deg
FCOB256- FCOB256- FCOB256- FCOB256-
WF0-5M-12-K008 WF0-5M-24-K008 Luminaire 105lm/W WF0-5M-12-K010-ECO WF0-5M-24-K010-ECO Luminaire 93lm/W
effica(c4y000K) @Ra90 effica(c4y000K) @Ra90
Step length(mm/xLED) 7.8mm/4LEDS 62.5mm/32LEDs Step length(mm/xLED) 7.8mm/4LEDS 62.5mm/32LEDs
Number LED/m 512 512 Number LED/m 512 512
Voltage(V) 12V 24V Voltage(V) 12V 24V
Ra 90 90 Ra 90 90
Beam Angle(°) Beam Angle(°) 140 140 1190lm
140 140 850lm
Power (w/m) 10 10 Power (w/m) 14 14 1260lm
1000lm
FPC width (mm) 8 8 FPC width (mm) 10 10 1300lm
1050lm
Max.length per circuit (m) 5 5 Max.length per circuit (m) 5 5 1380lm
1100lm
IP rate 20/65/66/67/68 20/65/66/67/68 IP rate 20/65/66/67/68 20/65/66/67/68
Installation 3M Tape / Mounting Clips / Aluminum Profiles Installation 3M Tape / Mounting Clips / Aluminum Profiles
