バルブや接手の緩みで悩んでませんか？

JW Basic Information of Lock Device 超高純度用UHP Typeのバルブや接手の 緩みで悩んでは御座いませんか？ Lock Deviceのボルトは 左右回転動作 継手ボルトは 上下の回転動作 JLock DWeviceのBodyが継手をしっかりと固定させる 継手のボルトとLock Deviceのボルトが 逆方向で締める事で、相互二重締めになる。 特許のDouble Lock技術を適用したジウエーテック社の ロックデバイス（金具）をご紹介致します。 Office +82.70.7477.9741 l Fax +82.31.705.6241 l email shbyun@kataoka.co.kr www.jiwooat.com

JW Basic Information of Lock Device Patent Mechanism Colorize Lock Out, Tag Out フィメールナットとメールナットを Patent # : 10-1916699 しっかりと固定 毒性ガスの種類別で ラインの区分可能 1 2 3 4 Supply/Return等の ライン別にも区分可能 2019 Patent Awards ロックアウト・タグアウトにより 安全な環境作りに貢献出来ます。 JW スウェージロック(VCR), フジキン(UJR), KITZ(CVC)等 殆どのメーカに対応出来るラインアップを揃ってます。 Office +82.70.7477.9741 l Fax +82.31.705.6241 l email shbyun@kataoka.co.kr www.jiwooat.com

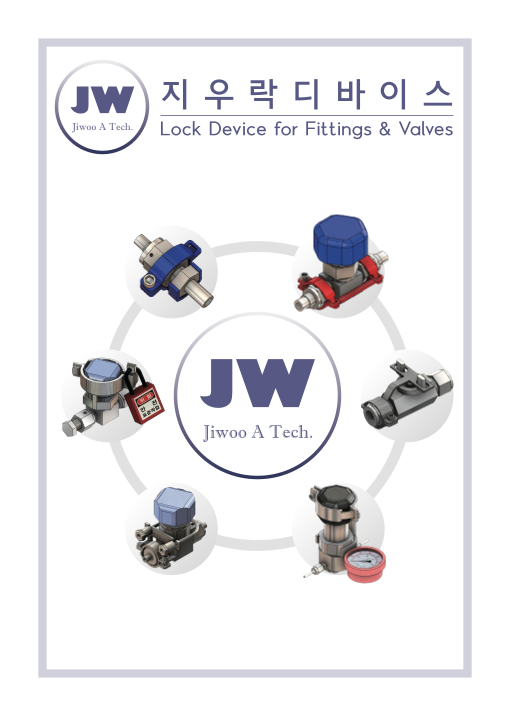

緩み防止用ロックデバイス Lock Device for Fittings & Valves JW

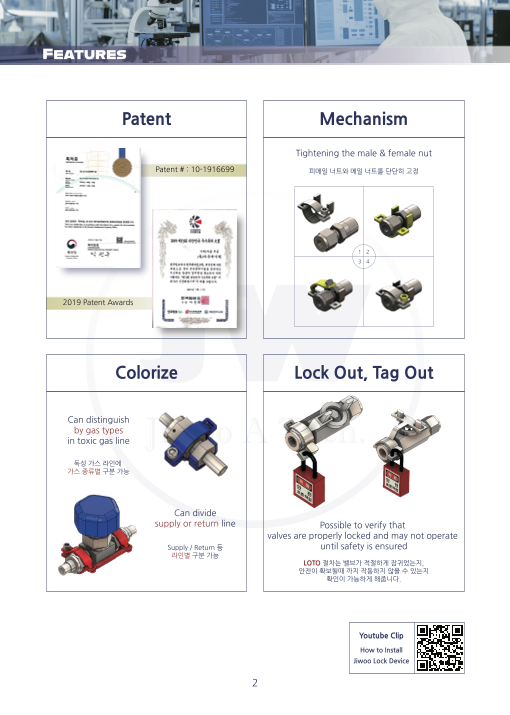

Features Patent Mechanism フィメールナットとメールナットを しっかりと固定 Patent # : 10-1916699 Lock Male & Female Nut Tightly 1 2 3 4 2019 Patent Awards ColJorize WLock Out, Tag Out 毒性ガスの種類別で ラインの区分可能 Can distinguish by gas types in toxic gas line Supply/Return等の ライン別にも区分可能 ロックアウト・タグアウトにより 安全な環境作りに貢献出来ます。 Can divide supply or return line By using a LOTO procedure, you ensure that any valve that is to be used is properly shut off, and will not be operated until it is safe to do so. 2

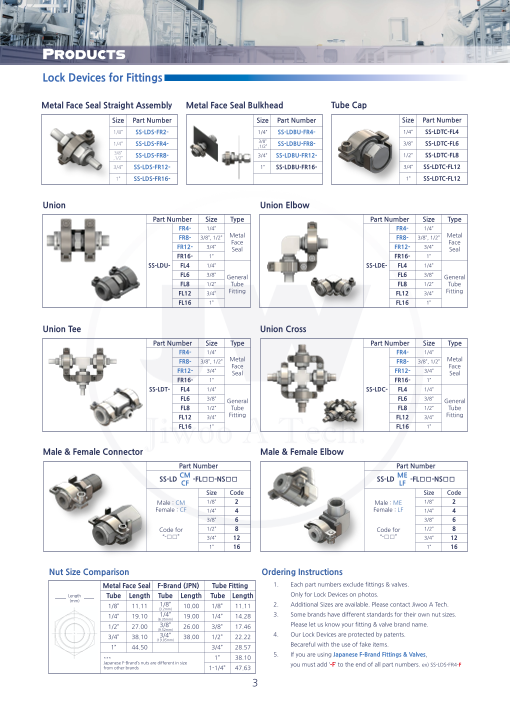

Products Only for VCR Assembly For Straight VCR Assembly For VCR Bulkhead Union For 2-Way VCR Standard Valves Size Part Number Size Part Number Size Part Number 1/8” SS-LDS-FR2 1/4” SS-LDBU-FR4 1/4” SS-LDV-FR4 1/4” SS-LDS-FR4 1/2” SS-LDBU-FR8 1/2” SS-LDV-FR8 1/2” SS-LDS-FR8 3/4” SS-LDBU-FR12 3/4” SS-LDV-FR12 3/4” SS-LDS-FR12 1” SS-LDBU-FR16 1” SS-LDV-FR16 1” SS-LDS-FR16 For Male VCR Valve - Bonnet Strap For Male VCR Valve - Plate Lock For Female VCR Valve - Plate Lock Size Part Number Size Part Number Size Part Number 1/4” SS-LDV-FR4-S 1/4” SS-LDV-FR4-P 1/4” SS-LDV-FFR4-P 1/2” SS-LDV-FR8-S 1/2” SS-LDV-FR8-P 1/2” SS-LDV-FFR8-P *** *** M.VCR (Integral / Rotatable) Additional Size Available for Pre-Cursor Canister VMB.. Both Available, VCR & General Lok Fittings For Union JWFor Union Elbow Part Number Size Type Part Number Size Type FR4 1/4” FR4 1/4” FR8 1/2” FR8 1/2” VCR VCR FR12 3/4” FR12 3/4” FR16 1” FR16 1” SS-LDU- FL4 1/4” SS-LDE- FL4 1/4” FL6 3/8” FL6 3/8” FL8 1/2” LOK FL8 1/2” LOK FL12 3/4” FL12 3/4” FL16 1” FL16 1” For Union Tee For Union Cross Part Number Size Type Part Number Size Type FR4 1/4” FR4 1/4” FR8 1/2” FR8 1/2” VCR VCR FR12 3/4” FR12 3/4” FR16 1” FR16 1” SS-LDT- FL4 1/4” SS-LDC- FL4 1/4” FL6 3/8” FL6 3/8” FL8 1/2” LOK FL8 1/2” LOK FL12 3/4” FL12 3/4” FL16 1” FL16 1” Nut Size Comparison Ordering Instructions VCR Nut General Lok Nut 1. Each part numbers exclude fittings & valves. Length Tube Length Tube Length Only for Lock Devices on photos. (mm) 1/8” 11.11 1/8” 11.11 2. Additional Sizes are available. Please contact Jiwoo A Tech. 1/4” 19.10 1/4” 14.28 3. Some brands have different standards for their own nut sizes. 1/2” 27.00 3/8” 17.46 Please let us know your fitting & valve brand name. 3/4” 38.10 1/2” 22.22 4. Our Lock Devices are protected by patents. 1” 44.50 3/4” 28.57 Becareful with the use of fake items. *** 1” 38.10 Fujikin nuts are different in size from other brands 1-1/4” 47.63 3

Products Only for General Lok Fittings For Male & Female Connector For Male & Female Elbow Part Number Part Number CM ME SS-LD -FL□□-NS□□ SS-LD -FL□□-NS□□ CF LF Size Code Size Code Male : CM 1/8” 2 Male : ME 1/8” 2 Female : CF 1/4” 4 Female : LF 1/4” 4 3/8” 6 3/8” 6 Code for 1/2” 8 Code for 1/2” 8 “-□□” 3/4” 12 “-□□” 3/4” 12 1” 16 1” 16 For Male Connector + Hose For Tube Cap Size Part Number Size Part Number 1/4” SS-LDCM-HC4 1/4” SS-LDTC-FL4 3/8” SS-LDCM-HC6 3/8” SS-LDTC-FL6 1/2” SS-LDCM-HC8 1/2” SS-LDTC-FL8 3/4” SS-LDCM-HC12 3/4” SS-LDTC-FL12 1” SS-LDCM-HC16 1” SS-LDTC-FL12 For Various Types of Valves For All Valves / Filters, etcJ. WPart Number Tube Size Type Total Length Decision FR4 1/4” FR8 1/2” VCR *** FR12 3/4” FR16 Various sizes are available. SS-LDV- -74* 1” FL4 1/4” ex) ‘L’ : 74mm FL6 3/8” General → SS-LDV-FR4-74 FL8 1/2” Lok FL12 3/4” Total Length FL16 1” For Hex Ball Valve / Opened Handle Lock For Hex Ball Valve / Closed Handle Lock Type 1 For Hex Ball Valve / Closed Handle Lock Type 2 Size Part Number Size Part Number Size Part Number 1/4” SS-LDHV-FL4-O 1/4” SS-LDHV-FL4-C1 1/4” SS-LDHV-FL4-C2 3/8” SS-LDHV-FL6-O 3/8” SS-LDHV-FL6-C2 1/2” SS-LDHV-FL8-O 1/2” SS-LDHV-FL8-C2 3/4” SS-LDHV-FL12-O 3/4” SS-LDHV-FL12-C2 1” SS-LDHV-FL16-O 1” SS-LDHV-FL16-C2 Special Order Products / Handle Lock Series For Regulator Handle Lock For Fujikin Valve’s Handle Lock For Diaphragm Valve’s Handle Lock Size Part Number Size Part Number Size Part Number ** SS-LDR-BN** 1/4” SS-LDV-BN**-C3 1/4” SS-LDV-FR4-HDL *** *** Please let us know your regulator’s information; Padlock is not included. 1) Brand 2) Part Numbers Refer to page 5. 4

Additional Options LOTO Products / Additional Locking Options Additional Locking Options This option is intended for use additional lock on Jiwoo Lock Devices for all sizes and models. Straps with a hole to add padlock will be provided. The hole can also be used to attach identifiable tags instead of padlocks. It comes with a bracket cover that prevents unauthorized operators from operating valves or fittings without permission. Examples : SS-LDS-FR16-L Safety Lock Strap with Safety Lock Holder Bracket Cover Availability of other materials Size Part Number Size Part Number To order, replace N with S. 1/8” JW1/4” SS-LD-FR4-L LK-CV-S ~1/2” 3/4” 1/2” SS-LD-FR8-L LK-CV-M Availability of other colors ~1” To order, replace R with B or G. Example : JW-MKPS25P-N-R Safety Lock How to Order 25mm Mater Key Safety Lock Numbering: MK1 00001 Sharkle JW-MKPS25P S R MK1 : Master Key Group Number 00001 : Serial Number Shackle Material Body Color S Steel R Red N Nylon B Blue Color Option G Green Body MK1-00001 30mm <Front> <Back> MK1-00001 Lock Devices for PFA Fittings Jiwoo lock devices can be used for PFA fittings & valves. Strap may need to be changed for PFA products. Examples : PF-LDCM-PF16-NS16-L (PFA Male Connector 1” with lock option) 5 34mm m 15 m

Instruction Ordering Number Description S S - L D C M - F R 4 - F R 4 - B R - 1 Fitting/Valve Product Connection Connection Device Additional Special Material Type Type Size Color Option Code SS For Steel Products S Straight VCR FR Male VCR 2 1/8” or 2mm Nil Standard Silver Nil No Option Q1 Type 1 PF For PFA Products BU Bulkhead VCR FFR Female VCR 4 1/4” or 4mm R Red 60 Body Length for Valve Q2 Type 2 ex)60mm =’-60’ : : U Union Type FL Fractional Lok 6 Union Type B Blue P Add Plate Option : : E Union Elbow ML Metric Lok 8 Union Elbow A Orange S Bonnet Strap Lock T Union Tee NS Male NPT 12 Union Tee G Green O Handle Locking Option / Opened Type C Union Cross FNS Female NPT 16 Union Cross Y Yellow C Handle Locking Option / Closed Type CM Male Connector PF PFA Fitting Ends 20 Male Connector : : L LOTO Safety Set (Strap & Bracket Cover_ ME Male Elbow BN Bonnet Hold 24 Male Elbow HD Round Valve Handle TC Tube Cap : : 32 Tube Cap : : V Standard Valves : : HV Hex BaJll Valve : : Example Fitting Description Suffix Code Assembly VCR Fitting Valve Length Lok Fitting Valve Length Stainless Steel Fitting SS 316SS, 1/2” Male Connector Male Connector LDCM Tube Lok End FL 1/2” 8 Male NPT End NS 1/2” W 1/2”OD M.NPT 1/2” 8 Length Length Assemble Instruction Tools Needed This lock device is intended for use on General Face Seal assemblies Note: The lock device is packaged pre-assembled with standard male and female nuts. as shown followed photo. Note: Always leak test fitting assemblies before installing a fitting Lock Device. 1. Using a 3.0mm hex key, loosen the cap screw from the lock device and disassemble collar and strap. Cap Screw Strap 2. Positions the collar around the fitting so the male nut fits within the parallel tabs of the collar and the female nut fits inside the wing tabs. 3. Insert the tab of the strap into the slot on the collar. 4. Swing the strap to meet the collar. The female nut should now be completely contained. Recheck the position of the parallel tabs and confirm they are centered with the hex flats of the male nut. Collar Wing Tab Warranty Information 5. Thread the cap screw through the large hole on the strap and into the threaded hole on the collar. Snug with hex key. Jiwoo Products are backed by Jiwoo A Tech Limited Lifetime Warranty. Note: Use care to ensure the screw does not become stripped due to For a copy, visit www.jiwooat.com or contact us, sales@jiwooat.com overtightening. Assemble is now complete. Caution : Do not mix or interchange parts with those of other manufacturers’ 6 JW

Examples 7

Jiwoo A-Tech. (주)지우에이텍 경기도 안양시 동안구 벌말로 66, A동 1501호 Rm#1501, 66, Beolmal-Ro, Dongan-Gu, Anyang-Si, Rep.of Korea Total Solution Provider for Fluid System Tube Fitting & Valves 日本総販売代理店 株式会社　韓国片岡 shbyun@kataoka.co.kr Rev.220318-R1 Office +82.2.6959.3495 l Fax +82.2.6919.1353 l email sales@jiwooat.com www.jiwooat.com
