Page1
スライド 1
S
SAGAMI COMIL
SELECTION GUIIDE
MI SAGA
SAGAMI
2024SAVOGL.A1.M02
SAGAMI SAG
SA
AG
AMI
G
AMI
SAGAMI ELEC CO., LTD.
AMI SAGA
SAGMI SAGAMI
AM
I SAGAMSAGAMI IS
I S
I AG
AM
SAGASAMGIA
AMI SA
GAMI G
I SA
AMI SAGAM
I SAG
I AM G
S
AM
I A
AMI S
AGAM G
Page2
スライド 0

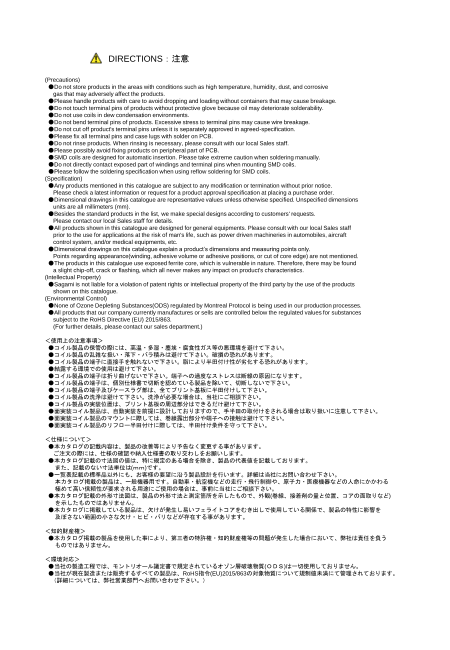

DIRECTIONS:注意
(Precautions)
●Do not store products in the areas with conditions such as high temperature, humidity, dust, and corrosive
gas that may adversely affect the products.
●Please handle products with care to avoid dropping and loading without containers that may cause breakage.
●Do not touch terminal pins of products without protective glove because oil may deteriorate solderability.
●Do not use coils in dew condensation environments.
●Do not bend terminal pins of products. Excessive stress to terminal pins may cause wire breakage.
●Do not cut off product's terminal pins unless it is separately approved in agreed-specification.
●Please fix all terminal pins and case lugs with solder on PCB.
●Do not rinse products. When rinsing is necessary, please consult with our local Sales staff.
●Please possibly avoid fixing products on peripheral part of PCB.
●SMD coils are designed for automatic insertion. Please take extreme caution when soldering manually.
●Do not directly contact exposed part of windings and terminal pins when mounting SMD coils.
●Please follow the soldering specification when using reflow soldering for SMD coils.
(Specification)
●Any products mentioned in this catalogue are subject to any modification or termination without prior notice.
Please check a latest information or request for a product approval specification at placing a purchase order.
●Dimensional drawings in this catalogue are representative values unless otherwise specified. Unspecified dimensions
units are all millimeters (mm).
●Besides the standard products in the list, we make special designs according to customers' requests.
Please contact our local Sales staff for details.
●All products shown in this catalogue are designed for general equipments. Please consult with our local Sales staff
prior to the use for applications at the risk of man's life, such as power driven machineries in automobiles, aircraft
control system, and/or medical equipments, etc.
●Dimensional drawings on this catalogue explain a product’s dimensions and measuring points only.
Points regarding appearance(winding, adhesive volume or adhesive positions, or cut of core edge) are not mentioned.
●The products in this catalogue use exposed ferrite core, which is vulnerable in nature. Therefore, there may be found
a slight chip-off, crack or flashing, which all never makes any impact on product's characteristics.
(Intellectual Property)
●Sagami is not liable for a violation of patent rights or intellectual property of the third party by the use of the products
shown on this catalogue.
(Environmental Control)
●None of Ozone Depleting Substances(ODS) regulated by Montreal Protocol is being used in our production processes.
●All products that our company currently manufactures or sells are controlled below the regulated values for substances
subject to the RoHS Directive (EU) 2015/863.
(For further details, please contact our sales department.)
<使用上の注意事項>
●コイル製品の保管の際には、高温・多湿・塵埃・腐食性ガス等の悪環境を避けて下さい。
●コイル製品の乱雑な扱い・落下・バラ積みは避けて下さい。破損の恐れがあります。
●コイル製品の端子に直接手を触れないで下さい。脂により半田付け性が劣化する恐れがあります。
●結露する環境での使用は避けて下さい。
●コイル製品の端子は折り曲げないで下さい。端子への過度なストレスは断線の原因になります。
●コイル製品の端子は、個別仕様書で切断を認めている製品を除いて、切断しないで下さい。
●コイル製品の端子及びケースラグ部は、全てプリント基板に半田付けして下さい。
●コイル製品の洗浄は避けて下さい。洗浄が必要な場合は、当社にご相談下さい。
●コイル製品の実装位置は、プリント基板の周辺部分はできるだけ避けて下さい。
●面実装コイル製品は、自動実装を前提に設計しておりますので、手半田の取付けをされる場合は取り扱いに注意して下さい。
●面実装コイル製品のマウントに際しては、巻線露出部分や端子への接触は避けて下さい。
●面実装コイル製品のリフロー半田付けに際しては、半田付け条件を守って下さい。
<仕様について>
●本カタログの記載内容は、製品の改善等により予告なく変更する事があります。
ご注文の際には、仕様の確認や納入仕様書の取り交わしをお願いします。
●本カタログ記載の寸法図の値は、特に規定のある場合を除き、製品の代表値を記載しております。
また、記載のない寸法単位は(mm)です。
●一覧表記載の標準品以外にも、お客様の要望に沿う製品設計を行います。詳細は当社にお問い合わせ下さい。
本カタログ掲載の製品は、一般機器用です。自動車・航空機などの走行・飛行制御や、原子力・医療機器などの人命にかかわる
極めて高い信頼性が要求される用途にご使用の場合は、事前に当社にご相談下さい。
●本カタログ記載の外形寸法図は、製品の外形寸法と測定箇所を示したもので、外観(巻線、接着剤の量と位置、コアの面取りなど)
を示したものではありません。
●本カタログに掲載している製品は、欠けが発生し易いフェライトコアをむき出しで使用している関係で、製品の特性に影響を
及ぼさない範囲の小さな欠け・ヒビ・バリなどが存在する事があります。
<知的財産権>
●本カタログ掲載の製品を使用した事により、第三者の特許権・知的財産権等の問題が発生した場合において、弊社は責任を負う
ものではありません。
<環境対応>
●当社の製造工程では、モントリオール議定書で規定されているオゾン層破壊物質(ODS)は一切使用しておりません。
●当社が現在製造または販売するすべての製品は、RoHS指令(EU)2015/863の対象物質について規制値未満にて管理されております。
(詳細については、弊社営業部門へお問い合わせ下さい。)
1
Page3
スライド 1
Power Inductors for Class-D Amplifier
Selection Map
Green=AEC-Q200
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
DER6042C 6.0 6.0 4.5 3.3-22 2.8-7 1.3-4.8 -40 to 125 SMD
DBK6568H 6.5 5.0 7.3 3.3-12 8-14.8 2.2-4.3 -40 to 125 SMD
DER7052 7.0 7.0 5.5 7.5-22 2.1-3.4 1.4-3 -40 to 125 SMD
DBE7210H 11.0 7.2 10.2 10-22 4.3-6 3-3.6 -40 to 125 SMD
DBL7280H 7.2 6.7 8.5 1-10 3.1-12.2 2-5 -40 to 125 SMD
DBL8087H 8.0 8.0 9.0 3.3-22 3-7.2 1.8-3.9 -40 to 125 SMD
DBLQ8097HA 8.0 8.0 10.0 3.3-5 5.7-8.1 4-4.6 -40 to 125 SMD
DBLQ8097HB 8.0 8.0 10.0 3.3 9.8 3.3 -40 to 125 SMD
7G09B 9.0 10.0 10.0 3.3-22 3.2-8.1 2.5-4.8 -40 to 125 SMD
DBL9097HB 9.0 10.0 10.0 3.3-22 3.2-8.1 2.5-4.8 -40 to 125 SMD
DBE1010H 10.5 12.8 10.2 10 8.5 3.7 -40 to 125 SMD
DBE1010HB 10.5 12.8 10.2 3.3-22 4.3-12 3-5.1 -40 to 125 SMD
DBL1010HB 10.5 12.8 10.7 3.3-22 4.3-11.6 3-5.4 -40 to 125 SMD
DBE1316HH 13.5 15.0 16.0 5-10 11.1-16.3 6.2-9.1 -40 to 125 SMD
DRP9210C 9.2 15.3 10.0 3.3-10 6.9-12.9 2.2-4.2 -40 to 125 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
2 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page4
スライド 2
Power Inductors for Class-D Amplifier
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
DVP1725AD 17.2 17.2 28.0 7-22 10.5-20 4-6 -40 to 105 PIN
7G13A 13.0 6.4 15.0 10-33 3.4-6 5.3-8 -40 to 125 PIN
7G13C 13.0 6.4 15.0 4.7-10 9-12.3 6-8 -40 to 125 PIN
7G14A 14.0 7.6 16.0 10-33 6.1-8.3 5.1-7.8 -40 to 125 PIN
7G14C 14.0 7.6 16.0 4.7-22 9-20 5.1-7.8 -40 to 125 PIN
7G14D 14.0 9.6 16.0 10 15 7 -40 to 125 PIN
7G14J 14.0 9.6 16.0 10 18 4.6 -40 to 125 PIN
7G14M 14.0 7.6 16.0 10-33 6.1-8.3 5.1-7.8 -40 to 125 PIN
7G17C 17.5 15.0 19.3 10-33 7.5-26 6 -40 to 125 PIN
7G17D 17.5 15.0 19.3 10-33 7.5-26 8.2 -40 to 125 PIN
7G23A 23.0 20.0 23.0 10-33 10.4-37.8 9.4 -40 to 125 PIN
7G23B 23.0 14.5 23.0 10-22 16.5-31.5 8.7-9.1 -40 to 125 PIN
7G23C/G 23.0 14.5 23.0 10-20 21-35 5.8-6.7 -40 to 125 PIN
7G31A 31.0 19.0 33.0 10-22 31-61 12-12.5 -40 to 125 PIN
DVH2523B 14.0 25.2 22.0 10-33 15.8-26.3 4.5-6.9 -40 to 125 PIN
DVH2822 19.0 28.0 22.4 20 30 9 -40 to 125 PIN
DVK1313H 13.0 10.0 14.4 4.7-22 11.8-25.2 6.4-14.2 -40 to 125 PIN
DVK1313HA 13.0 10.0 14.4 4.7-22 11.8-25.2 6.4-14.2 -40 to 125 PIN
DVL1315H 13.0 13.0 15.0 10-15 4-6 6.8 -40 to 125 PIN
DVX1315H 13.0 20.0 15.0 10-15 4-6 6.8 -40 to 125 PIN
DVK1516H 15.6 15.6 17.2 4.7-22 18.5-44.3 10.4-18.8 -40 to 125 PIN
DVK1516HA 15.6 15.6 17.2 4.7-22 18.5-44.3 10.4-18.8 -40 to 125 PIN
DLM1623C 15.9 15.0 23.0 10-22 10-15 3.8-6.4 -40 to 125 PIN
DLM1623M 15.9 15.0 23.0 10-22 10-15 3.8-6.4 -40 to 125 PIN
7W14A 14.0 15.5 16.0 10-22 6.2-11 5.1-7 -40 to 125 PIN
7W14B 14.0 15.5 16.0 10 11 7 -40 to 125 PIN
7W15B 15.0 21.5 15.5 10-22 10-14 5.2-7.7 -40 to 125 PIN
RTP8010 7.8 7.8 10.0 4.3-1000 0.38-5.7 0.28-3.1 -40 to 85 PIN
7311NC 10.7 10.7 11.7 10-1000 0.5-5.5 0.35-3.3 -40 to 85 PIN
7313NC 12.6 12.6 15.0 10-1000 0.55-6 0.65-5.1 -40 to 85 PIN
5RFW (for Piezo) 5.7 5.7 8.0 330 0.43 0.17 -40 to 125 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order. 3
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page5
スライド 1
Power Inductors
Green=AEC-Q200
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
7E03LA 3.0 3.0 1.5 1.2-39 0.25-1.3 0.38-2.2 -20 to 105 SMD
7E03LB 3.0 3.0 1.5 1.2-22 0.44-1.9 0.44-1.9 -20 to 105 SMD
7E03NA 3.0 3.0 2.0 1.2-180 0.11-1.2 0.27-3.3 -20 to 105 SMD
7E03NB 3.0 3.0 2.0 1.2-56 0.35-2.2 0.35-2.2 -20 to 105 SMD
7E04SA 4.0 4.0 1.8 1.5-39 0.26-1.4 0.5-2.9 -20 to 105 SMD
7E04SB 4.0 4.0 1.8 1.5-27 0.45-1.8 0.55-2.6 -20 to 105 SMD
7E04LA 4.0 4.0 2.0 1.5-56 0.22-1.4 0.5-3.1 -20 to 105 SMD
7E04LB 4.0 4.0 2.0 1.5-39 0.39-2 0.53-2.9 -20 to 105 SMD
7E04NA 4.0 4.0 3.0 1.5-150 0.19-2 0.35-3.6 -20 to 105 SMD
7E04NB 4.0 4.0 3.0 1.5-100 0.27-2.3 0.4-3.1 -20 to 105 SMD
7E04NS 4.0 4.0 3.0 1.5-270 0.09-1.2 0.3-3.8 -20 to 105 SMD
7E05DD 5.0 5.0 2.0 1.3-47 0.72-4.51 0.76-4.69 -20 to 105 SMD
7E05ED 5.0 5.0 3.0 1.4-100 0.66-6.14 0.59-4.68 -20 to 105 SMD
7E06LA 6.0 6.0 2.0 1.2-120 0.25-2.4 0.42-4.8 -20 to 105 SMD
7E06LB 6.0 6.0 2.0 1.2-82 0.4-3.1 0.44-4.1 -20 to 105 SMD
7E06NA 6.0 6.0 3.0 1.2-470 0.17-3.4 0.31-5.6 -20 to 105 SMD
7E06NB 6.0 6.0 3.0 1.2-270 0.26-3.6 0.33-5.2 -20 to 105 SMD
CER3017C 3.0 3.0 2.0 1.2-56 0.35-2.2 0.35-2.2 -40 to 150 SMD
CER4017C 4.0 4.0 2.0 1.5-39 0.39-2 0.53-2.7 -40 to 150 SMD
CER4027C 4.0 4.0 3.0 1.5-100 0.27-2.3 0.4-2.6 -40 to 150 SMD
CER5017C 5.0 5.0 2.0 1.3-47 0.55-3.15 0.58-2.8 -40 to 150 SMD
CER5027C 5.0 5.0 3.0 1.4-100 0.4-3.5 0.45-3.7 -40 to 150 SMD
CER6017C 6.0 6.0 2.0 1.2-82 0.4-3.1 0.44-4.1 -40 to 150 SMD
CER6027C 6.0 6.0 3.0 1.2-270 0.26-3.6 0.33-5.2 -40 to 150 SMD
CER6027V 6.0 6.0 3.0 100-1000 0.2-0.57 0.27-0.88 -40 to 150 SMD
CER6042C 6.0 6.0 4.5 1-820 0.33-9.1 0.3-6.4 -40 to 150 SMD
CER7027B 7.0 7.0 3.0 1.1-1000 0.16-5.3 0.15-4.6 -40 to 125 SMD
CER7027C 7.0 7.0 3.0 1.1-1000 0.16-5.3 0.15-4.6 -40 to 150 SMD
CER7032B 7.0 7.0 3.5 1.2-1000 0.17-5.2 0.17-4.6 -40 to 125 SMD
CER7032C 7.0 7.0 3.5 1.2-1000 0.17-5.2 0.17-4.6 -40 to 150 SMD
CER7042B 7.0 7.0 4.5 1.2-1000 0.18-5.25 0.21-4.7 -40 to 125 SMD
CER7042BA 7.0 7.0 4.5 1.2-1000 0.21-6.25 0.19-4.6 -40 to 125 SMD
CER7042C 7.0 7.0 4.5 1.2-1000 0.18-5.25 0.21-4.7 -40 to 150 SMD
CER7042CA 7.0 7.0 4.5 1.2-1000 0.21-6.25 0.19-4.6 -40 to 150 SMD
※CER3017Cは端子強度を除きAEC-Q200対応 CER3017C AEC-Q200 compliant without terminal strength
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
4 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page6
スライド 2
Power Inductors
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
CER7052B 7.0 7.0 5.5 1.2-1000 0.227-6.7 0.212-4.6 -40 to 125 SMD
CER7052C 7.0 7.0 5.5 1.2-1000 0.227-6.7 0.212-4.6 -40 to 150 SMD
CER7052V 7.0 7.0 5.5 100-1000 0.33-1 0.26-0.94 -40 to 150 SMD
CER8042B 8.0 8.0 4.5 1.1-1000 0.45-13.2 0.32-8 -40 to 125 SMD
CER8042C 8.0 8.0 4.5 1.1-1000 0.45-13.2 0.32-8 -40 to 150 SMD
CER8065B 8.0 8.0 6.8 1.2-1000 0.53-15.4 0.41-7.45 -40 to 125 SMD
CER8065C 8.0 8.0 6.8 1.2-1000 0.53-15.4 0.41-7.45 -40 to 150 SMD
CER8065V 8.0 8.0 6.8 100-1000 0.53-1.65 0.38-1.19 -40 to 150 SMD
CER1042B 10.0 10.0 4.5 1.5-1000 0.54-12.2 0.4-8.25 -40 to 125 SMD
CER1042C 10.0 10.0 4.5 1.5-1000 0.54-12.2 0.4-8.25 -40 to 150 SMD
CER1065B 10.0 10.0 6.8 1-1000 0.7-20.4 0.53-9.3 -40 to 125 SMD
CER1065C 10.0 10.0 6.8 1-1000 0.7-20.4 0.53-9.3 -40 to 150 SMD
CER1065V 10.0 10.0 6.8 100-1000 0.7-2.15 0.49-1.56 -40 to 150 SMD
CER1242B 12.0 12.0 4.5 1.3-1000 0.58-16 0.47-9.9 -40 to 125 SMD
CER1242C 12.0 12.0 4.5 1.3-1000 0.58-16 0.47-9.9 -40 to 150 SMD
CER1257B 12.0 12.0 6.0 2.2-1000 0.73-17.1 0.55-9.9 -40 to 125 SMD
CER1257C 12.0 12.0 6.0 2.2-1000 0.73-17.1 0.55-9.9 -40 to 150 SMD
CER1277B 12.0 12.0 8.0 2.2-1000 0.89-17.7 0.68-9.6 -40 to 125 SMD
CER1277C 12.0 12.0 8.0 2.2-1000 0.89-17.7 0.68-9.6 -40 to 150 SMD
HER3027 3.0 3.0 3.0 1-68 0.35-2.85 0.35-2.6 -40 to 125 SMD
HER3027C 3.0 3.0 3.0 1-68 0.35-2.85 0.35-2.6 -40 to 150 SMD
HER4027 4.0 4.0 3.1 1-100 0.4-3.9 0.36-3.2 -40 to 125 SMD
HER4027C 4.0 4.0 3.1 1-100 0.4-3.9 0.36-3.2 -40 to 150 SMD
HER5027 5.0 5.0 3.1 1-180 0.35-5.5 0.37-5.3 -40 to 125 SMD
HER5027C 5.0 5.0 3.1 1-180 0.35-5.5 0.37-5.3 -40 to 150 SMD
HER6027 6.0 6.0 3.1 0.82-470 0.3-7.2 0.3-6.7 -40 to 125 SMD
HER6027C 6.0 6.0 3.1 0.82-47 0.9-7.2 0.9-6.7 -40 to 150 SMD
HER6042C 6.0 6.0 4.5 0.82-560 0.44-11.2 0.38-7 -40 to 150 SMD
HER7052 7.0 7.0 5.5 3.3-47 2.6-7.7 0.89-3.5 -40 to 125 SMD
HER7052C 7.0 7.0 5.5 3.3-47 2.6-7.7 0.89-3.5 -40 to 125 SMD
HER7052CA 7.0 7.0 5.5 3.3-47 1.9-8 1.1-4.9 -40 to 125 SMD
HER8080 8.0 8.0 8.4 1.5-470 0.84-14.5 0.65-7.73 -40 to 125 SMD
HER8080C 8.0 8.0 8.4 1.5-470 0.84-14.5 0.65-7.73 -40 to 150 SMD
HER1090 10.0 10.0 9.2 1.1-1000 0.95-25.7 0.62-9.3 -40 to 125 SMD
HER1090C 10.0 10.0 9.2 1.1-1000 0.95-25.7 0.62-9.3 -40 to 150 SMD
※HER3027Cは端子強度を除きAEC-Q200対応 HER3027C AEC-Q200 compliant without terminal strength
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order. 5
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page7
スライド 3
Power Inductors
Green=AEC-Q200
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
CBH1053HA 10.5 10.2 5.7 3.2-8 7.4-11.2 3.5-5.1 -40 to 150 SMD
CBH1380HA 13.5 12.4 8.4 8.3-33 5.5-11 2.8-5.3 -40 to 150 SMD
CBE1597H 15.5 15.9 10.0 1-22 9.5-45.4 8.2-25.9 -40 to 150 SMD
CBE1914HS 19.0 18.7 15.6 1-10 21-95 19-31 -40 to 150 SMD
CBE1914HU 19.0 15.6 15.6 15-33 9-19 11 -40 to 150 SMD
CBE2618H 26.0 26.9 18.6 3.3-33 7-85 32 -40 to 150 SMD
CJD6045 5.8 5.8 4.9 1.2-3300 0.085-4.5 0.12-3.9 -40 to 125 SMD
CJD6057 5.8 5.8 5.7 1000-33000 0.022-0.128 0.037-0.253 -40 to 125 SMD
CJD8050 7.8 7.8 5.3 1.3-6800 0.1-7.7 0.11-4.9 -40 to 125 SMD
CDG2521C 2.5 2.5 2.4 0.019-0.03 27.8-38.6 20.8 -40 to 150 SMD
CDG3833C 6.0 3.8 3.3 0.045-0.08 41.3-63.4 32.1 -40 to 150 SMD
CDG3833CB 6.0 3.8 3.3 0.045-0.08 41.3-63.4 32.1 -40 to 150 SMD
CDG6250C 6.8 6.7 5.0 0.09-0.15 35-63 35 -40 to 150 SMD
CDG9672C 13.4 9.6 7.2 0.2-0.59 29.1-92.7 48.9 -40 to 150 SMD
CDG9672CB 13.4 9.6 7.2 0.2-0.59 29.1-92.7 48.9 -40 to 150 SMD
CHTR6145C 6.5 6.5 4.5 0.82-470 0.38-8.8 0.35-6 -40 to 180 SMD
CHVR1277 12.0 12.0 8.0 150-1400 0.73-2.15 0.47-1.7 -40 to 150 SMD
7206M 5.8 5.8 4.5 10-1000 0.11-1 0.15-1.4 -40 to 85 PIN
7206N 5.8 5.8 6.0 10-1000 0.13-1.4 0.19-1.95 -40 to 85 PIN
7208L 7.8 7.8 5.1 10-1000 0.25-2.2 0.17-1.7 -40 to 85 PIN
7208M 7.8 7.8 7.0 10-1000 0.3-3 0.27-2.4 -40 to 85 PIN
7208N 7.8 7.8 9.0 10-1000 0.25-2.5 0.3-2.3 -40 to 85 PIN
7210 10.0 10.0 8.0 10-3300 0.3-7 0.15-2.5 -40 to 85 PIN
7212M 12.5 12.5 11.5 10-10000 0.15-5 0.16-3.3 -40 to 85 PIN
7212N 12.5 12.5 17.0 10-10000 0.25-8.8 0.2-3.4 -40 to 85 PIN
7306 5.8 5.8 6.0 10-1000 0.1-1.05 0.16-1.45 -40 to 85 PIN
7308 7.8 7.8 7.0 10-1000 0.19-2 0.23-1.8 -40 to 85 PIN
7310 10.2 10.2 8.6 10-1000 0.25-2.3 0.39-2.7 -40 to 85 PIN
RTP8010 7.8 7.8 10.0 4.3-1000 0.38-5.7 0.28-3.1 -40 to 85 PIN
7311NC 10.7 10.7 11.7 10-1000 0.5-5.5 0.35-3.3 -40 to 85 PIN
7313NC 12.6 12.6 15.0 10-1000 0.55-6 0.65-5.1 -40 to 85 PIN
7916N 16.0 16.0 18.0 3.9-100 4.4-24 3.1-8.9 -40 to 85 PIN
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
6 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page8
スライド 4
Power Inductors
Selection Map
■ SMD Type*Showing the performance of 10μH product
■ Through-hole Type *Showing the performance of 10μH product
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
CVE1918H 19.0 13.4 19.5 1-33 9-95 12-32 -40 to 150 PIN
CVE1918HA 19.0 13.4 19.5 1-33 9-95 12-32 -40 to 150 PIN
CVE1918M 20.5 18.0 20.5 47-180 4-12 5.6-7.6 -40 to 150 PIN
CVE2622C 26.9 16.5 23.3 3.3-33 7-85 33 -40 to 150 PIN
CVE2622H 26.9 16.5 23.3 3.3-33 7-85 33 -40 to 125 PIN
CVE2622HA 26.9 16.5 23.3 3.3-33 7-85 33 -40 to 125 PIN
CVE2622M 26.5 17.5 24.5 47-120 6.4-12.8 9-12 -40 to 150 PIN
CVE3527H 35.8 24.8 27.0 6.8-22 28-90 32 -40 to 150 PIN
CVE3527M 35.8 24.8 28.0 33-470 6-22 4.6-14 -40 to 150 PIN
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。 7
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page9
スライド 1
Metal Composite Power Inductors
Selection Map
35A Type & Color bar
XRK-A 【High Withstand voltage】:100V
30A 0.15μ
XRK-B 【Standard Withstand voltage】:80V
25A XRK-D 【High Isat/High Withstand voltage】:100V
XRK(small size) 【Standard Withstand voltage】: 40V
20A
0.24μ XRJ(small size) 【Standard Withstand voltage】: 40V
XRJ 【Low DCR/Standard Withstand voltage】:80V
15A .
0.47
0.1μ
0.15μ 0.47μ
10A 1.0μ
0.15μ
0.15μ 1.0μ
7.0A
5.0A 1.0μ 1.0μ 2.2μ 4.7μ
4.0A
3.0A 3.3μ 4.7μ 6.8μ
10μ 10μ 10μ
2.0A
1.0A
Isat 2016 2520 3225 3225L 3225M 0420
Series
100A 0.22μ 0.22μ 0.47μ
90A
80A
0.47μ
1.0μ
70A
0.20μ
60A
0.47μ 0.68μ
50A
40A 0.20μ
0.15μ 0.47μ 1.0μ 1.0μ
35A 0.47μ
10μ
1.0μ
30A 0.15μ 1.0μ
1.0μ
25A
0.2μ
1.0μ
20A
0.2μ
0.47μ 0.47μ
10μ
15A 2.2μ 1.0μ
10μ 10μ
0.47μ 0.47μ 1.0μ 10μ
10μ
10A 1.0μ
1.0μ 1.0μ 22μ 100μ
10μ 68μ
7.0A 10μ 10μ 10μ
56μ 56μ
5.0A
10μ 10μ
4.0A 100μ
10μ 10μ 33μ 33μ 100μ
3.0A 68μ 100μ
2.0A
1.0A
Isat 0530 0730 0754 0854 1040 1054 1365 1770 2213
Series
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
8 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page10
スライド 2
Metal Composite Power Inductors
Green=AEC-Q200
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
XRJ2016 2.0 1.6 1.0 0.15-3.3 2-7.5 1.2-5.4 -40 to 125 SMD
XRJ2520 2.5 2.0 1.2 0.15-4.7 2.1-8.7 1.5-5.8 -40 to 125 SMD
XRK3225 3.2 2.5 1.2 0.15-6.8 2-11.6 1.3-6.8 -40 to 125 SMD
XRJ3225L 3.2 2.5 1.2 0.1-10 1.7-12 1.1-7 -40 to 125 SMD
XRJ3225M 3.2 2.5 2.0 2.2-8.2 2-5 1.2-2.9 -40 to 125 SMD
XRJ0420 4.1 4.1 2.0 0.08-4.7 4-30 5.5-22 -40 to 125 SMD
XRK0420A 4.4 4.2 2.0 0.24-22 1.65-19 1.2-13 -40 to 125 SMD
XRK0530A 5.4 5.1 3.0 0.2-10 2.3-24 2.3-15.8 -40 to 150 SMD
XRK0530B 5.4 5.2 3.0 0.2-22 1.7-23 1.7-20.5 -40 to 150 SMD
XRK0730A 7.1 6.8 3.0 0.15-33 2.3-36 1.6-18.5 -40 to 150 SMD
XRK0730B 7.0 6.6 3.0 0.15-33 2.3-32 1.6-24 -40 to 150 SMD
XRJ0754 7.5 7.2 5.4 2.2-10 6-15 5-13 -40 to 150 SMD
XRK0754D 7.5 7.2 5.4 1.0-100 3.2-28 1.5-12.9 -40 to 150 SMD
XRK0854B 8.1 8.0 5.4 1-68 1.9-15 2.1-14 -40 to 150 SMD
XRK1040A 11.1 10.0 4.0 0.2-100 2-40 1.5-33 -40 to 150 SMD
XRK1040B 10.8 10.0 4.0 0.2-100 2.5-60 1.8-36 -40 to 150 SMD
XRK1054D 10.85 10.0 5.4 1.0-22 7-36 5-19.3 -40 to 150 SMD
XRK1365A 13.2 12.5 6.5 0.22-56 4.6-100 4.6-41 -40 to 150 SMD
XRK1365B 13.45 12.6 6.5 0.22-56 4.3-100 4-44 -40 to 150 SMD
XRK1770B 17.15 17.15 7.0 0.68-68 5.4-57 4.4-28 -40 to 150 SMD
XRK2213B 22.48 22.0 13.0 0.47-100 8-100 6.4-66 -40 to 150 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order. 9
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page11
スライド 1
Inductors for RF/ EMC Components/ Antenna
Inductors for RF
Green=AEC-Q200
W D H max L SRFmin. Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (MHz) (A) (℃)
C1608CB 1.5 0.9 0.82 0.0015-0.39 700-6000 0.12-0.7 -40 to 125 SMD
C1608H 1.5 0.9 0.82 0.0027-0.047 2400-6000 0.7-1.4 -40 to 125 SMD
C2012CB 2.3 1.7 1.6 0.0033-1 300-6000 0.14-0.6 -40 to 125 SMD
C2012H 2.3 1.7 1.6 0.0027-0.15 900-6000 0.45-1.5 -40 to 125 SMD
C3328A 3.3 2.8 2.8 0.008-0.0185 2200-5000 4.0 -20 to 85 SMD
C6328A 6.3 2.8 2.8 0.0175-0.043 1200-2200 4.0 -40 to 125 SMD
C6342A 6.3 4.2 4.2 0.05-0.135 500-1000 3.0 -40 to 125 SMD
BCN1066C 10.8 7.1 6.9 0.132-0.544 330-759(Typ.) 4.5-6.1 -40 to 150 SMD
EMC Components
W D H max Impedance【100MHz】 Irat Temp range
Type Pkg
(mm) (mm) (mm) (Ω) (A) (℃)
TGQR5027C 5.0 5.0 3.0 813-2095 1.6-2.0 -40 to 150 SMD
TQR5017C 5.0 5.0 2.0 313-1732 1.4-2.2 -40 to 125 SMD
TQR5027C 5.0 5.0 3.0 300-1496 1.9-2.8 -40 to 125 SMD
TQR8048C 8.0 8.0 5.1 258-1096 4.1-5.5 -40 to 125 SMD
TQR1250C 12.0 12.0 5.3 619-1145 4.5-5.6 -40 to 125 SMD
PRCG4036C 5.7 4.3 3.9 67 9.1 -40 to 150 SMD
TDG6029C 6.0 8.8 3.5 50 7.0 -40 to 125 SMD
Antenna
W D H max L DCR max. Temp range
Type Pkg
(mm) (mm) (mm) (μH) (Ω) (℃)
AME1136 11.6 13 3.9 4.9-7.2 153-209 -40 to 125 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
10 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page12
スライド 1
DC/DC Converter Transformer for Automotive Equipment
Selection Map
Green=AEC-Q200
W D H max Output
Withstand voltage Max. Temp
Type Number of range
power Core Shape
(mm) (mm) (mm) terminals (V) Pkg
(W) (℃)
VER9060A 10.8 10.0 6.2 8 1.7 AC1500 ER -40 to 150 SMD
VER9060B 10.8 10.0 6.2 8 1.7 AC2500 ER -40 to 150 SMD
VEP7010A 10.7 13.3 8.6 6 2.0 AC600 EP -40 to 150 SMD
VEP7010B 10.7 10.5 10.0 8 2.0 AC2500 EP -40 to 150 SMD
VER1160A 12.4 12.0 6.1 8 2.3 AC1500 ER -40 to 150 SMD
VER1160B 12.4 12.0 6.1 8 2.3 AC2500 ER -40 to 150 SMD
VERS1160B 12.0 12.9 6.5 10 2.3 AC2500 ER -40 to 150 SMD
VEP1012A 13.2 15.4 11.0 8 3.0 AC1500 EP -40 to 150 SMD
VEP1012B 13.2 14.0 11.3 8 3.0 AC2500 EP -40 to 150 SMD
VEC1388B 17.8 19.8 8.8 10 4.8 AC2500 EPC -40 to 150 SMD
VER1480B 15.5 16.0 8.0 10 5.4 AC2500 ER -40 to 150 SMD
VEP1313A 14.0 17.5 12.4 10 7.0 AC1500 EP -40 to 150 SMD
VEP1313B 14.0 17.5 12.4 10 7.0 AC2500 EP -40 to 150 SMD
VEPS1313A 14.3 17.8 12.8 10 7.0 AC2500 EP -40 to 150 SMD
VEP1313V 14.3 14.0 14.5 10 7.0 AC4000 EP -40 to 150 SMD
VLC1511B 15.7 15.9 11.5 10 8.5 AC2600 EPC -40 to 150 SMD
VEC1711B 18.6 24.0 10.8 9 12.0 AC2500 EPC -40 to 150 SMD
VEC1911A 20.0 20.5 10.8 10 16.2 AC1500 EPC -40 to 150 SMD
VEC1911B 20.0 20.5 10.8 10 16.2 AC2500 EPC -40 to 150 SMD
VEC2511B 25.0 28.7 10.9 11 27.0 AC2500 EPC -40 to 150 SMD
VEC2514B 25.5 31.5 14.0 10 54.0 AC2500 EPC -40 to 150 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order. 11
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page13
スライド 2
Coupled Inductors / Corner sensor Transformers
Coupled Inductors
Green=AEC-Q200
W D H max L Isat Irat Temp range
Type Pkg
(mm) (mm) (mm) (μH) (A) (A) (℃)
SQR8042C 8.0 8.0 4.5 1-47 0.95-6.3 0.7-4.25 -40 to 125 SMD
SQR8042CA 8.0 8.0 4.5 1.3-47 0.95-6.3 0.7-3.85 -40 to 125 SMD
SQR8065C 8.0 8.0 6.8 1.2-150 0.65-8 0.52-4.5 -40 to 125 SMD
SQR8065CA 8.0 8.0 6.8 1.3-150 0.65-7.65 0.52-4.3 -40 to 125 SMD
SGQR8065CA 8.0 8.0 6.8 1.3-150 0.65-7.65 0.52-4.3 -40 to 125 SMD
SQR1042C 10.0 10.0 4.5 1.5-100 0.95-8.15 0.55-4.3 -40 to 125 SMD
SQR1065C 10.0 10.0 6.8 1.5-220 0.95-11.8 0.44-5.05 -40 to 125 SMD
SGQR1065CA 10.0 10.0 6.8 1.8-220 0.95-10.8 0.44-4.8 -40 to 125 SMD
SQR1242C 12.0 12.0 4.5 1.2-120 1.2-12.5 0.55-4.85 -40 to 125 SMD
SQR1257C 12.0 12.0 6.0 1.2-330 0.9-15.4 0.4-5.4 -40 to 125 SMD
SQR1277C 12.0 12.0 8.0 2-560 0.8-14.7 0.36-4.9 -40 to 125 SMD
SQR1277CA 12.0 12.0 8.0 2.2-180 2.1-18.6 0.67-4.6 -40 to 125 SMD
SGQR1277CA 12.0 12.0 8.0 2.2-180 2.1-18.6 0.68-4.2 -40 to 125 SMD
Corner sensor Transformers
W D H max L Number of Temp range
Type Pkg
(mm) (mm) (mm) (μH) terminals (℃)
5RGHB 5.7 5.7 7.1 4000 5 -40 to 125 SMD
5RFH 5.7 5.7 8.0 4000 5 -40 to 125 SMD
5RFHB 5.7 5.7 8.0 4000 5 -40 to 125 SMD
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
12 * Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order.
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page14
スライド 3
Balun Transformers
W D H max Temp range
Type Number of terminals Pkg
(mm) (mm) (mm) (℃)
4BMH 4.80 3.40 2.00 6 -20 to 105 SMD
4BLH 4.20 5.00 3.20 6 -20 to 105 SMD
6BLH 6.45 6.00 3.00 8 -20 to 105 SMD
7BKH 7.20 8.40 3.80 8 -20 to 105 SMD
10BGH 10.80SELEC10T.8I0ON GU6.I6D0E FOR ST1A0NDARD CO-2IL0 Sto 105 SMD
Type SAGAMI Winding Operating Insertion Connection
Part Number Turns Frequency Range Loss
タイプ サガミ品番 巻数 使用周波数範囲 挿入損失 接続図
(T) (Hz) (dB)
4BMH DKN0002GN2-R 2:2:2 100M~600M 3.0 max. (G)
CUN0002AN2-R 2:2:2:2 50M~1G 4.5 max.
CUN0003AN2-R 3:3:3:3 30M~1G 4.0 max. (A)
CUN0004AN2-R 4:4:4:4 20M~1G 4.0 max.
CUN01R5BN2-R 1.5:1.5 50M~600M 5.0 max.
(B)
4BLH CUN02R5BN3-R 2.5:2.5 50M~600M 3.5 max.
CUN03R5CN2-R 3.5:3.5:3.5 50M~500M 10.0 min.
CUN04R5CN2-R 4.5:4.5:4.5 50M~450M 12.0 min. (C)
CUN05R5CN2-R 5.5:5.5:5.5 50M~400M 15.0 min.
CUN0002DN2-R 2:2 50M~800M 6.5 max. (D)
50M 2.8±2.0
100M 7.3±2.5
6BLH DHN0003EN2-R 3:3:3:3 (E)
300M 12.0±3.0
500M 14.0±3.0
100M 4.0 min.
CZN0001EN2-R 1.5:1.5:1.5:1.5
400M 7.0 min.
100M 9.0 min.
7BKH CZN0002EN2-R 2.5:2.5:2.5:2.5 (E)
400M 12.0 min.
50M 11.0 min.
CZN0003EN2-R 3.5:3.5:3.5:3.5
100M 15.0 min.
10BGH DTT0001GN1-R 1:4:11 0.5M~60M 11.0 Typ. (H)
Note: 1.Data shown are values measured on jigs. 記事: 1.記載のデータは、弊社測定治具による値です。
Connection 接続図
(Bottom View)
3 4 3 4 3 4 3 4
2 5 2 5 2 5 2 5
1 6 1 6 1 6 1 6
(A) (B) (C) (D)
OUT2 ⑤ ⑥
4 5 3 4 3 4
④ ⑦
3 6
2 5 2 5 ③ ⑧
2 7
② ⑨
1 8 1 6 1 6
① ⑩
IN OUT1
(E) (F) (G) (H)
*記載内容は、予告無く変更あるいは製造中止する場合が有ります。ご注文時は最新の情報をご確認願います。
* Any products mentioned in this catalog are subject to any modification or termination without prior notice. Please check a latest information at placing a purchase order. 13
*記載製品のご使用に際しては、カタログ記載の『注意』をご確認願います。
* Please refer to " DIRECTIONS " in the catalog for proper use of the products.
Page15
スライド 2
サガミグループ 営業所 住所録 / SAGAMI WorldIwide Network
●国内営業所
〇本社営業部
〒230-0024 神奈川県横浜市鶴見区市場下町10-30
TEL 045-511-3143 FAX 045-511-3145
〇西日本営業所
〒573-0032 大阪府枚方市岡東町14-16
第8松葉ビル202号室
TEL 072-391-9812 FAX 072-391-9813
●海外営業拠点/World Sales Branches Offices
〇SAGAMI ELECTRONICS CO., LTD.
Room304,International Plaza,20 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong
TEL +852-2796-9861 FAX +852-2796-9616
〇SAGAMI ELECTRONIC(SHENZHEN)CO., LTD. SALES DIVISION
Room101-401, No.12 & Room101-401, No.13, Yongshun Street, Zhucun, Xinhe Community,
Fucheng Subdistrict, Longhua District, Shenzhen, Guangdong, China
TEL +86-755-2798-5214 FAX +86-755-2799-9394
〇SAGAMI ELECTRONIC(SHENZHEN)CO., LTD. SHANGHAI OFFICE
Room 607, 6/F, building 16th, No. 399 Xinlong Road, Minhang District, Shanghai, China
TEL +86-21-5877-6006 FAX +86-21-6888-9985
〇SAGAMI SINGAPORE PTE. LTD.
2 Toh Guan Road East, #04-02, Singapore 608837
TEL +65-6567-2925 FAX +65-6569-1035
サガミエレク株式会社
〒230-0024 神奈川県横浜市鶴見区市場下町10-30
【代表】TEL 045-511-3141 FAX 045-511-3683
SAGAMI ELEC CO., LTD.
10-30, Ichibashimo-cho, Tsurumi-ku Yokohama, Kanagawa 230-0024, Japan
TEL +81-45-511-3141 FAX +81-45-511-3683
https://www.sagami-elec.co.jp 発行2024年6月
ASA
G MGA
SA I M
